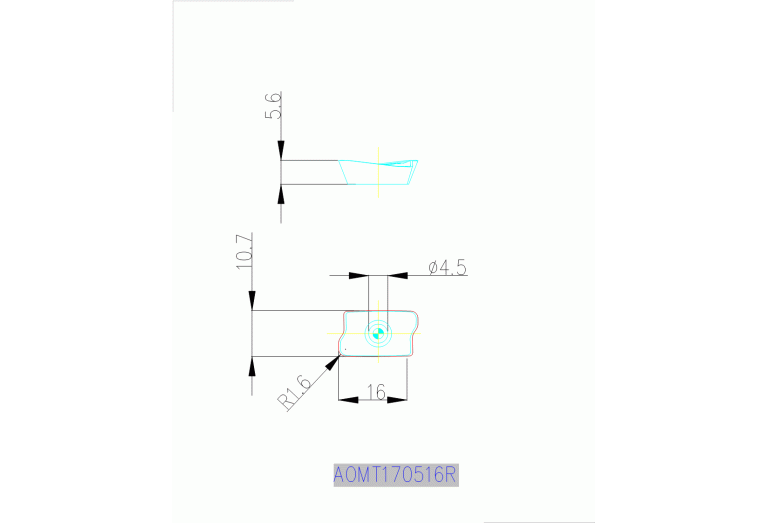

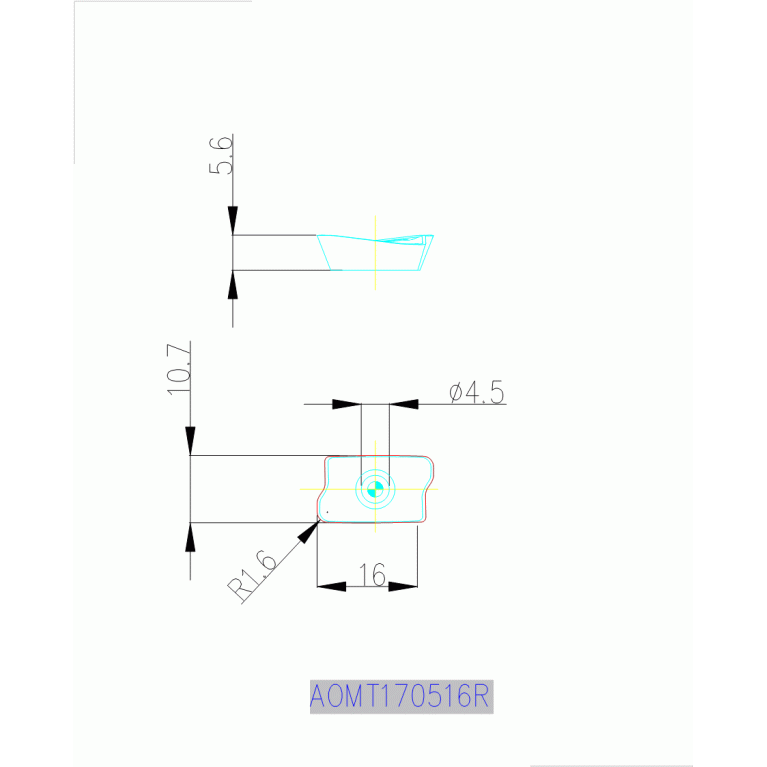

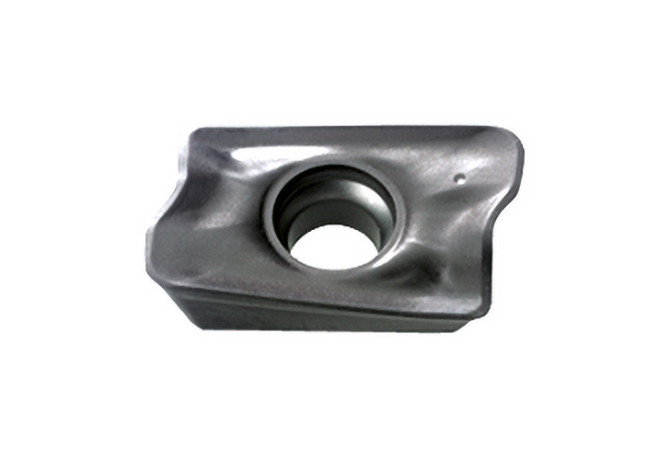

AOMT170516R IN2510

Артикул: 5874333

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

14 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

TiAIN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.5 mm

Delivery state

LL - Stock limited

DIN

AO1705 3R

EPSR Insert included angle

85 Degree

FamilyProducts

insert, positive geometry R1,6

GRD2ND Standard designation of the grade 2nd application

K10-K30

GRDMFG Grade manufacturers designation

IN2510

IC Inscribed circle diameter

10.7 mm

ID Technical product number

5874333

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

15 mm

LE Cutting edge effective length

16 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AO1705 3R

Name Identifying order number

AOMT170516R IN2510

RE Corner radius

1.6 mm

S Insert thickness

5.6 mm

S1 Insert thickness total

5.6 mm

STDDES Standard designation

AOMT170516

TCINS Tolerance class insert

W1 Insert width

10.7 mm

Working process

No working processes available
