Главная Каталог продукции Toolunited 10 201-05 - Parallelogram-shaped insert AOMT060216R IN2530

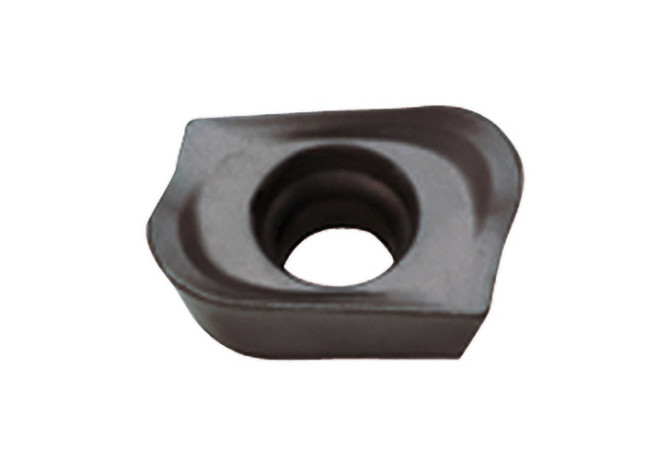

AOMT060216R IN2530

Артикул: 5813374

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

TiAlN+TiN

COMPC Company code

IL - Ingersoll

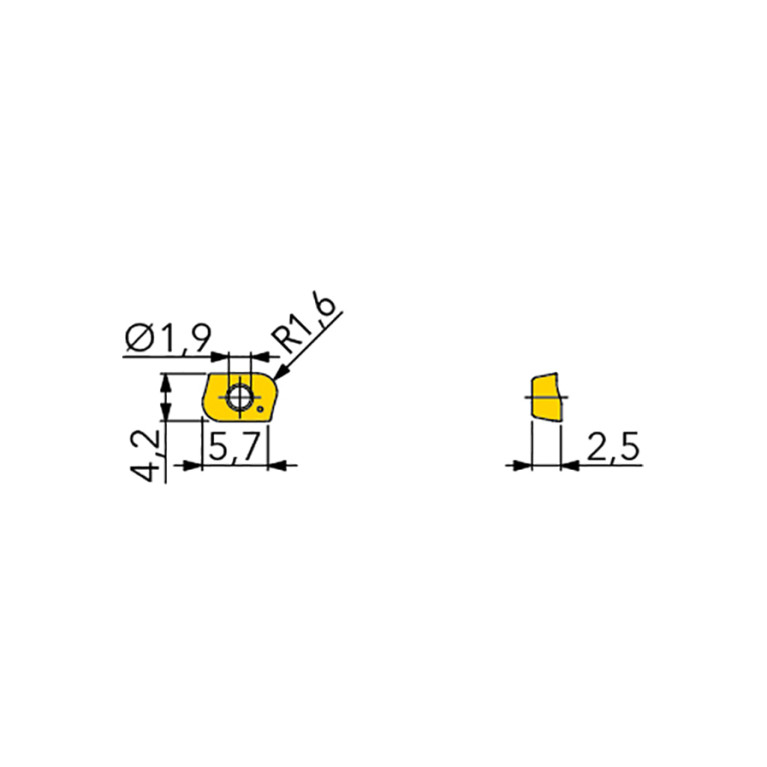

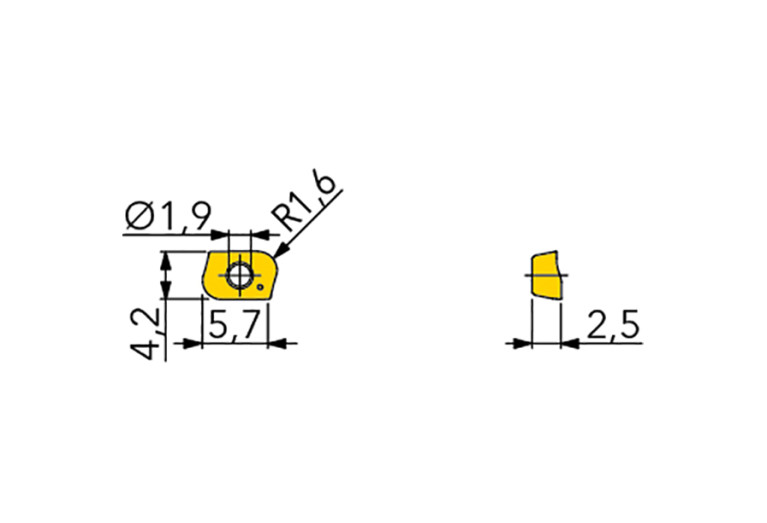

D1 Fixing hole diameter

1.9 mm

Delivery state

LL - Stock limited

DIN

AO0602 3R

EPSR Insert included angle

85 Degree

FamilyProducts

insert, double-edged, positive geometry with R1,6

GRD2ND Standard designation of the grade 2nd application

M15-M30

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2530

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

4.2 mm

ID Technical product number

5813374

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

4 mm

LE Cutting edge effective length

5.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AO0602 3R

Name Identifying order number

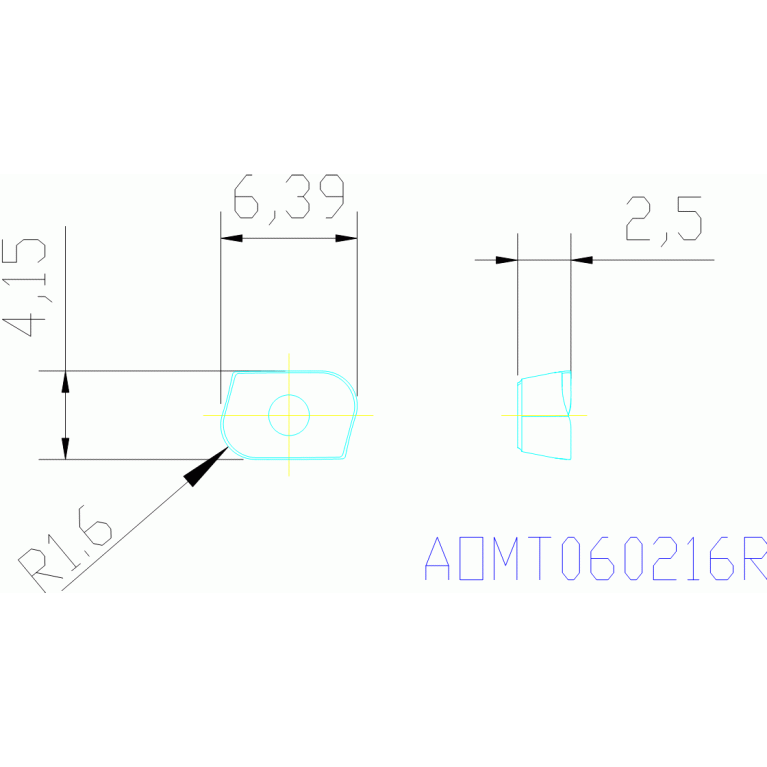

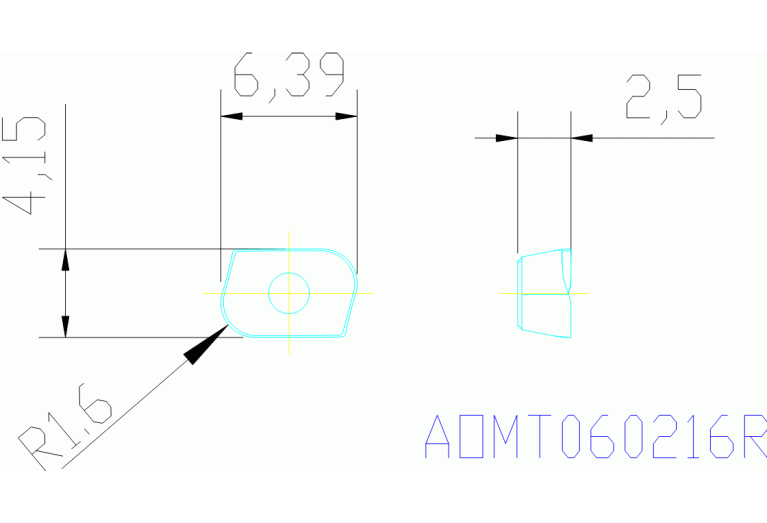

AOMT060216R IN2530

RE Corner radius

1.6 mm

S Insert thickness

2.6 mm

S1 Insert thickness total

2.6 mm

STDDES Standard designation

AOMT060216

TCINS Tolerance class insert

W1 Insert width

4.2 mm

Working process

No working processes available
