Главная Каталог продукции Toolunited 10 201-04 - Rectangular insert P290 ACKT 1806PDR-FWR IC882

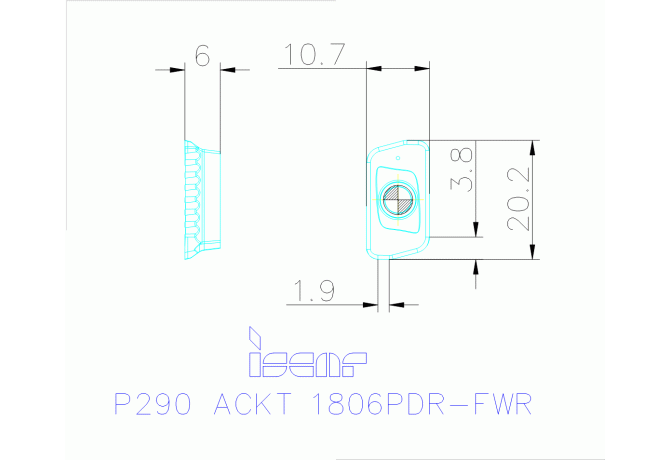

P290 ACKT 1806PDR-FWR IC882

Артикул: 3310573

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

BS Wiper edge length

1.9 mm

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiAlN+TiN

COMPC Company code

IS - Iscar

DIN

IS-589466197586527

FamilyProducts

Single-Sided Rectangular Inserts with Two Serrated Cutting Edges

GRDMFG Grade manufacturers designation

IC882

IC Inscribed circle diameter

10.7 mm

ID Technical product number

3310573

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$589466197586527

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

20.2 mm

LE Cutting edge effective length

18 mm

LOC-03 ISO

IS$$589466197586527

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-589466197586527

Name Identifying order number

P290 ACKT 1806PDR-FWR IC882

RE Corner radius

3.8 mm

S Insert thickness

6 mm

W1 Insert width

10.7 mm

Working process

No working processes available

WT Weight of item

0.01 kg
