Главная Каталог продукции Toolunited 10 201-04 - Rectangular insert P290 ACCT 1806PDR-HL-P IC28

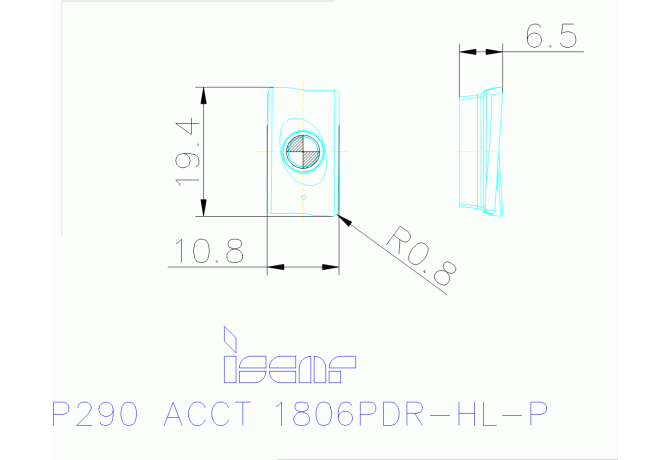

P290 ACCT 1806PDR-HL-P IC28

Артикул: 5668059

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

BS Wiper edge length

2.5 mm

CECC Cutting edge condition code

F - Sharpedged

COATN Coating

ohne

COMPC Company code

IS - Iscar

DIN

IS-618442703437109

FamilyProducts

Single-Sided Rectangular Inserts with Two 12 and 18 mm Straight Cutting Edges

GRDMFG Grade manufacturers designation

IC28

ID Technical product number

5668059

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$618442703437109

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

19.4 mm

LE Cutting edge effective length

18 mm

LOC-03 ISO

IS$$618442703437109

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-618442703437109

Name Identifying order number

P290 ACCT 1806PDR-HL-P IC28

RE Corner radius

0.8 mm

S Insert thickness

6.5 mm

Working process

No working processes available

WT Weight of item

0.01 kg
