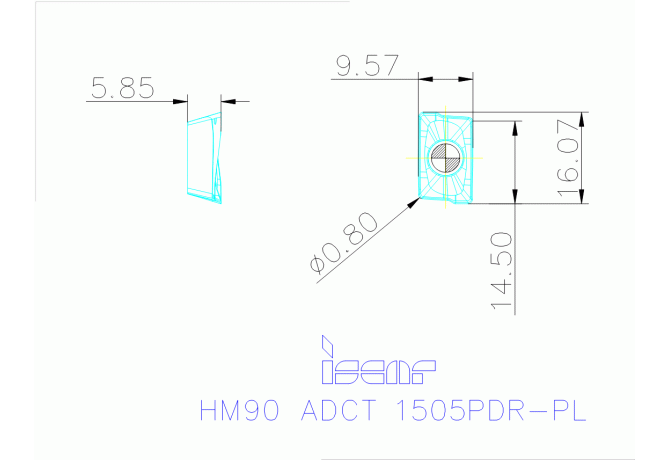

HM90 ADCT 1505PDR-PL IC830

Артикул: 5607497

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

2.16 mm

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

DIN

IS-1494245005933579

FamilyProducts

General Use Inserts with 2 Helical Cutting Edges for High 90° Shoulder Accuracy

GRDMFG Grade manufacturers designation

IC830

IC Inscribed circle diameter

9.65 mm

ID Technical product number

5607497

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$1494245005933579

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

16.18 mm

LE Cutting edge effective length

14.5 mm

LOC-03 ISO

IS$$1494245005933579

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-1494245005933579

Name Identifying order number

HM90 ADCT 1505PDR-PL IC830

RE Corner radius

0.8 mm

S Insert thickness

5.85 mm

W1 Insert width

9.65 mm

Working process

No working processes available

WT Weight of item

0.01 kg
