Главная Каталог продукции Toolunited 10 201-04 - Rectangular insert 225223 15

225223 15

Артикул: 225223 15

В наличии

В корзину

Описание

Характеристики

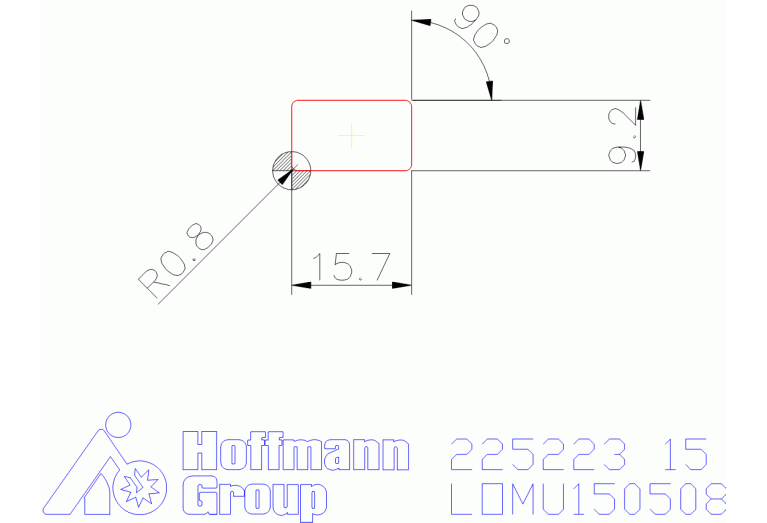

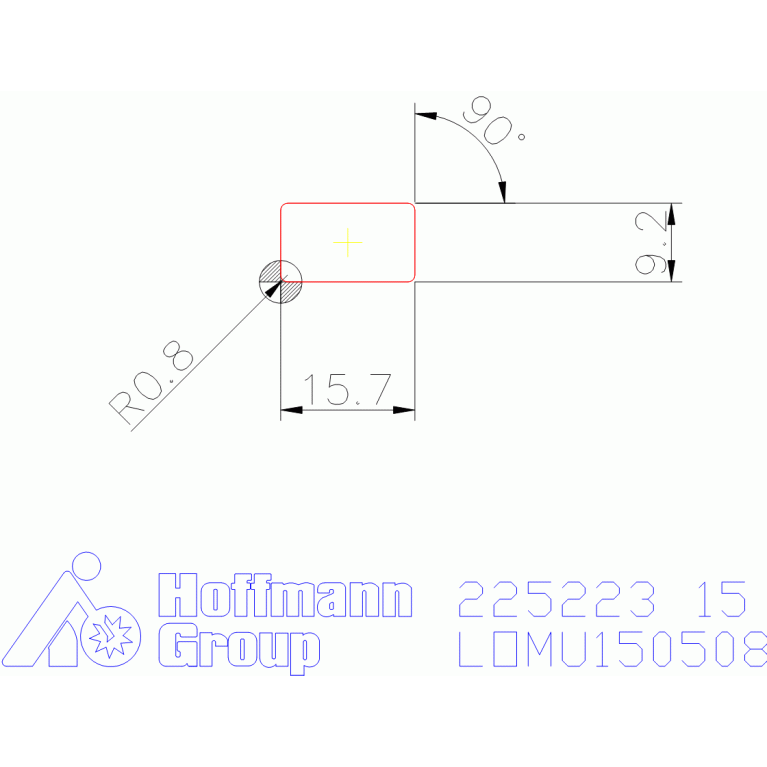

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating

MEGACOAT

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/1/2017

DIN

LO1505083R

EPSR Insert included angle

90 Degree

FamilyProducts

LOMU...08ER-GM

GAN Insert rake angle

10 Degree

GRDMFG Grade manufacturers designation

PR1225

IC Inscribed circle diameter

9.2 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

15.7 mm

LE Cutting edge effective length

15.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

LO1505083R

Name Identifying order number

225223 15

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

5.6 mm

S1 Insert thickness total

5.6 mm

STDDES Standard designation

LOMU150508

TCE Tipped cutting edge code

TCINS Tolerance class insert

W1 Insert width

9.2 mm

Working process

No working processes available

WT Weight of item

0.007 kg
