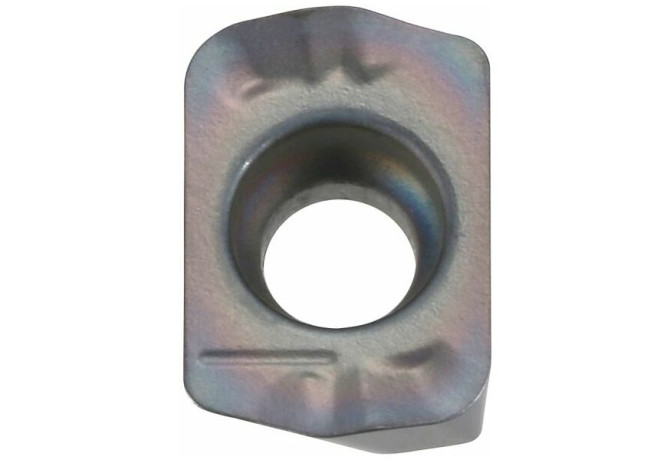

Главная Каталог продукции Toolunited 10 201-04 - Rectangular insert 221947 INOX

221947 INOX

Артикул: 221947 INOX

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

ANN Clearance angle minor

5 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

T - Chamfered

COATN Coating

MEGACOAT NANO

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

AP1003083R

EPSR Insert included angle

90 Degree

FamilyProducts

LPGT 010210 ER-GM

GAN Insert rake angle

17 Degree

GRDMFG Grade manufacturers designation

HB7525

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

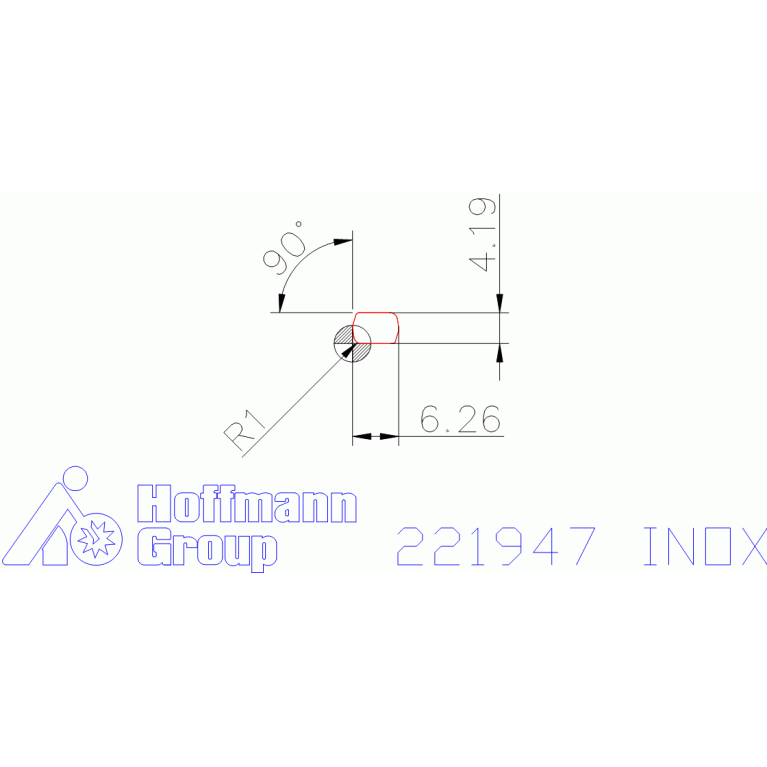

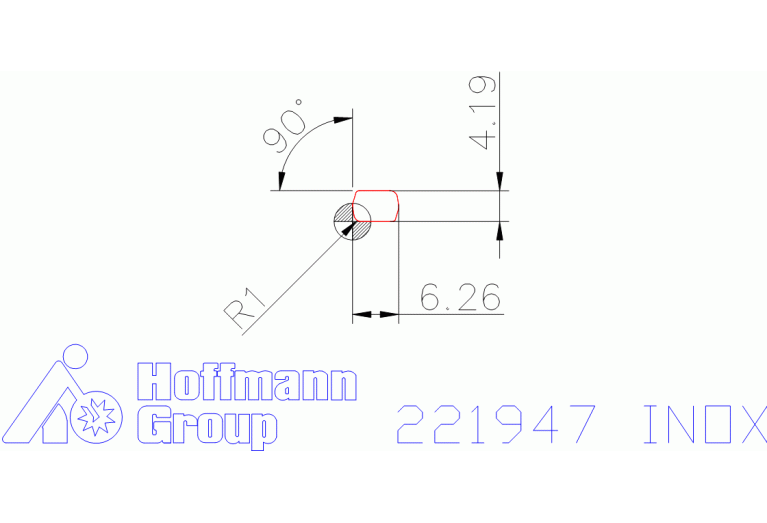

L Cutting edge length

6.26 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AP1003083R

Name Identifying order number

221947 INOX

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

APMT100308TR

TCE Tipped cutting edge code

TCINS Tolerance class insert

W1 Insert width

4.19 mm

Working process

No working processes available

WT Weight of item

0.0005 kg
