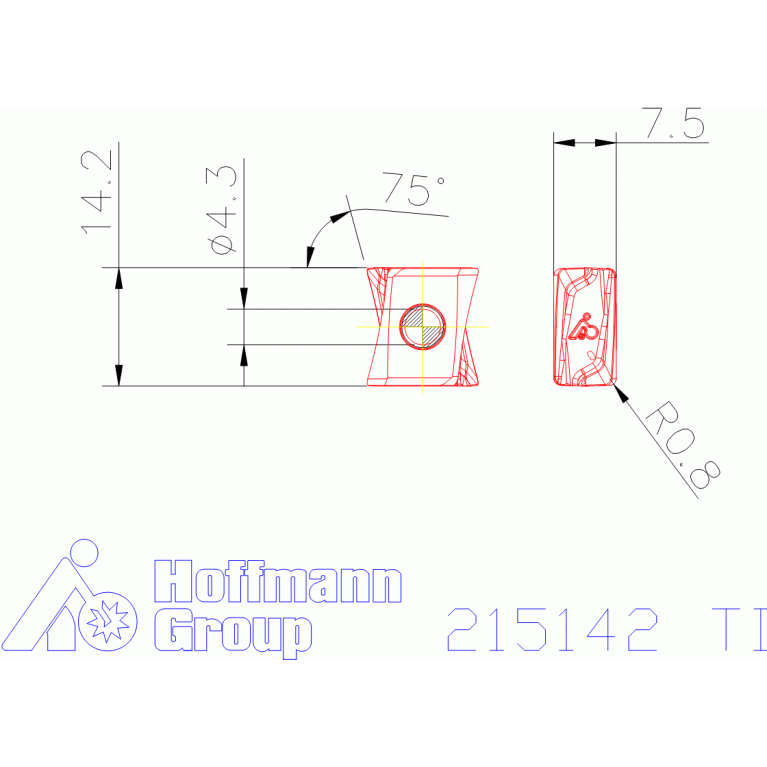

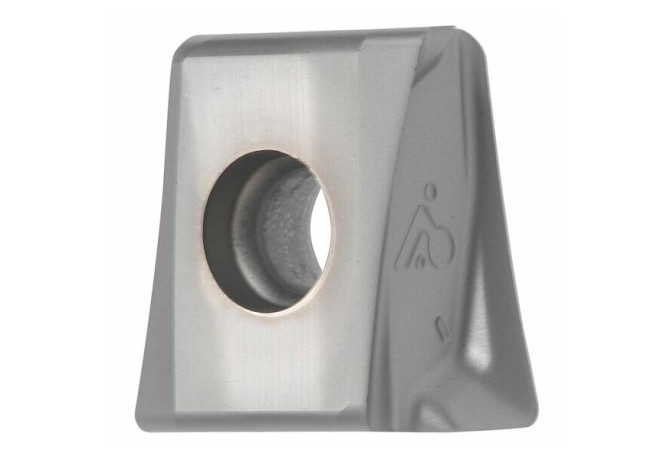

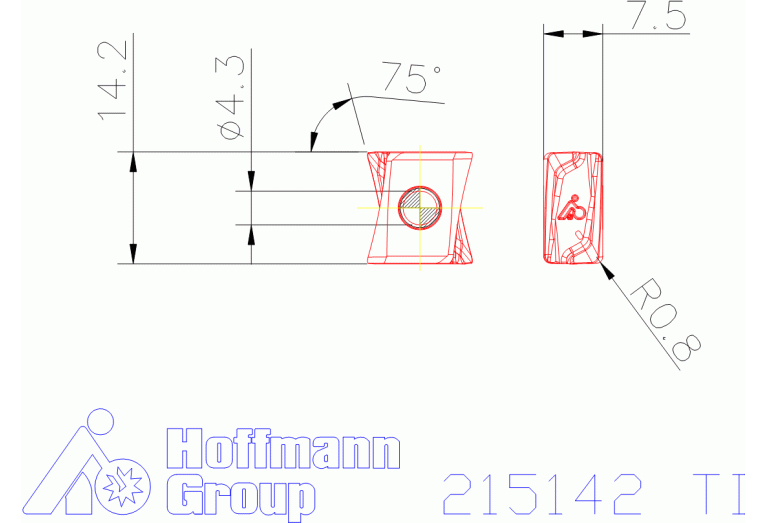

Главная Каталог продукции Toolunited 10 201-04 - Rectangular insert 215142 TI

215142 TI

Артикул: 215142 TI

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

2 Degree

ANN Clearance angle minor

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

LO1307083R

EPSR Insert included angle

77 Degree

FamilyProducts

215142 TI

GRDMFG Grade manufacturers designation

HB7940

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

14.2 mm

LE Cutting edge effective length

13.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

LO1307083R

Name Identifying order number

215142 TI

RE Corner radius

0.8 mm

STDDES Standard designation

LOEU130708R-L

TCE Tipped cutting edge code

TCINS Tolerance class insert

W1 Insert width

13.3 mm

Working process

No working processes available

WT Weight of item

0.1 kg
