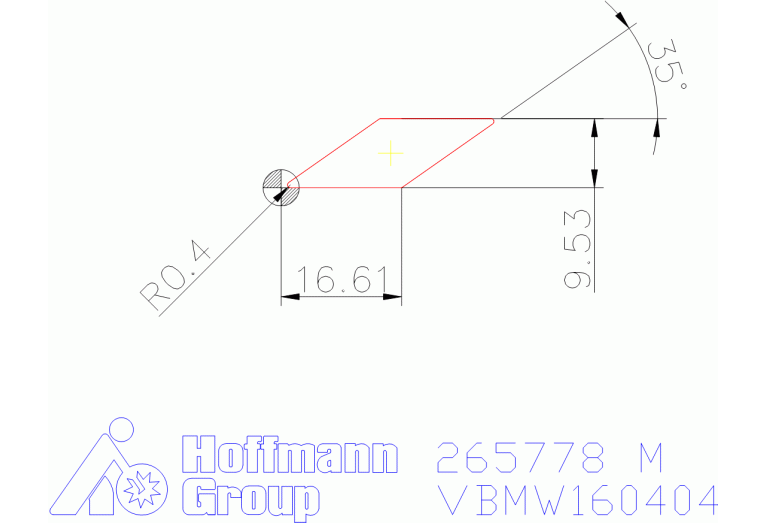

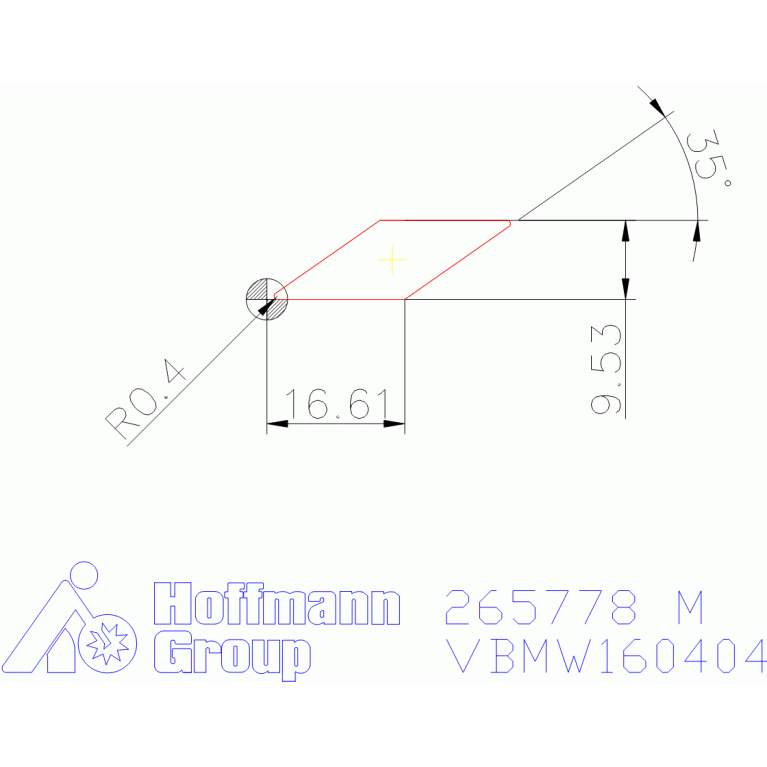

Главная Каталог продукции Toolunited 10 201-03 - Rhombic insert 265778 M

265778 M

Артикул: 265778 M

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

5 Degree

ANN Clearance angle minor

5 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

BUX220

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

VB1604043N

EPSR Insert included angle

35 Degree

FamilyProducts

VBMW160404

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

BUX220

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

15.74 mm

LE Cutting edge effective length

2.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VB1604043N

Name Identifying order number

265778 M

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VBMW160404

STDDESAnsi Standard designation ANSI

VBMW331

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0085 kg
