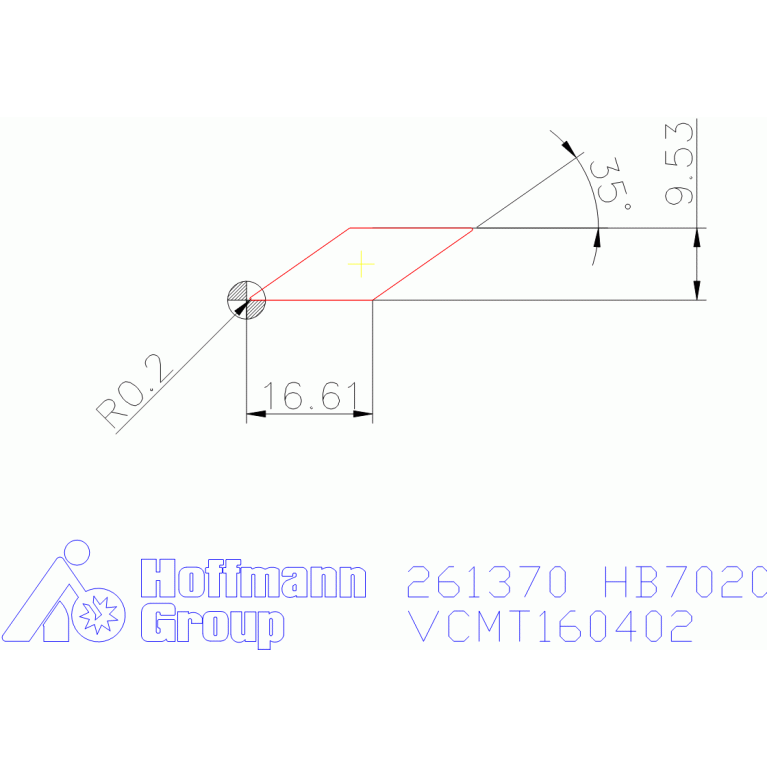

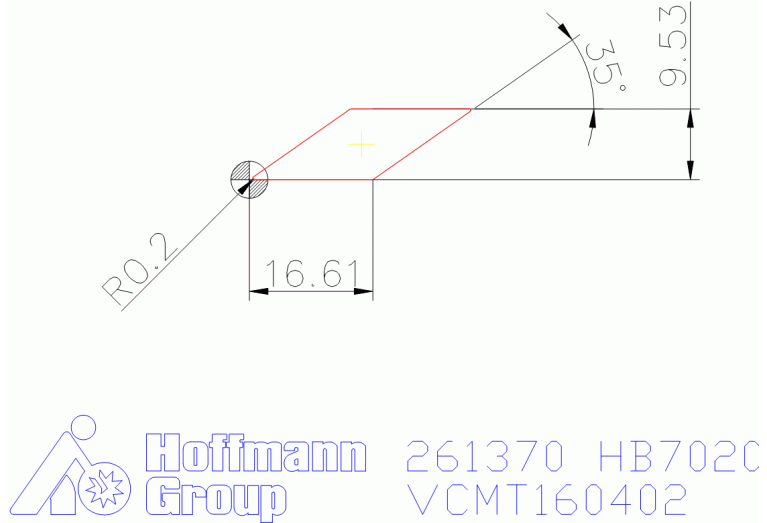

Главная Каталог продукции Toolunited 10 201-03 - Rhombic insert 261370 HB7020

261370 HB7020

Артикул: 261370 HB7020

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

ANN Clearance angle minor

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

TiCN / Al2O3

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

VC1604023N

EPSR Insert included angle

35 Degree

FamilyProducts

VCMT 160402

GAN Insert rake angle

15 Degree

GRDMFG Grade manufacturers designation

HB7020

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.6 mm

LE Cutting edge effective length

16 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC1604023N

Name Identifying order number

261370 HB7020

RE Corner radius

0.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VCMT160402

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.06 kg
