261364 HB7120-1
261364 HB7120-1
Артикул:
261364 HB7120-1
В наличии
Характеристики
AN Clearance angle major
7 Degree
ANN Clearance angle minor
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
COATN Coating
TiCN/Al2O3 CVD layer
COMPC Company code
HOG - Hoffmann Group
CSP Coolant supply property
0 - Without coolant supply
DIN
VC1103023N

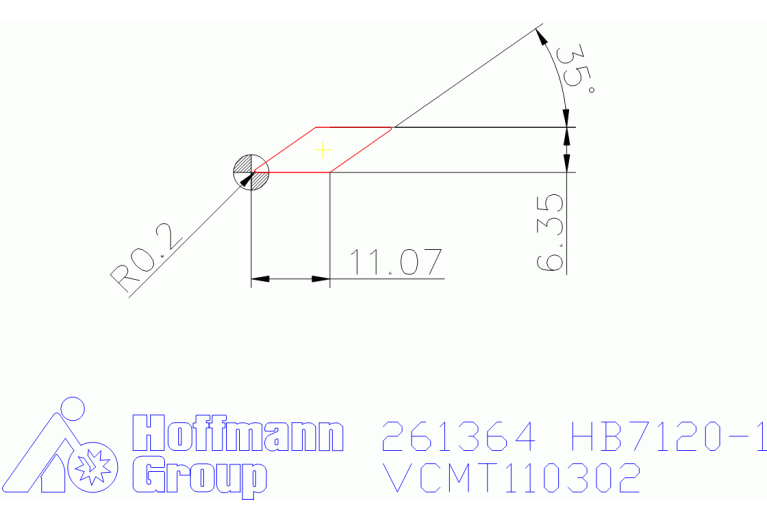

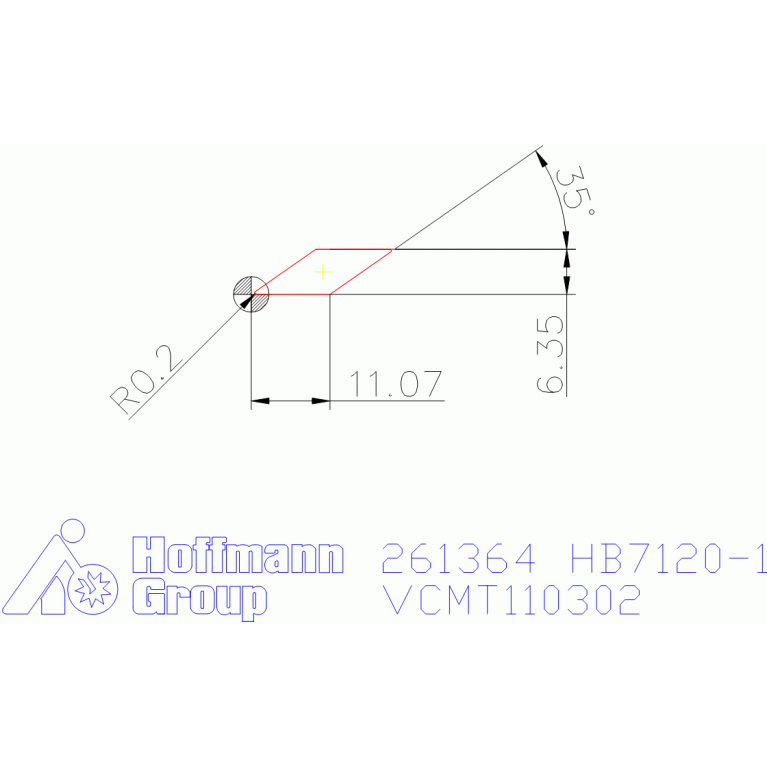

EPSR Insert included angle
35 Degree
FamilyProducts
VCMT 110302
GAN Insert rake angle
2 Degree
GRDMFG Grade manufacturers designation
HB7120-1
IC Inscribed circle diameter
6.35 mm
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
11.07 mm
LE Cutting edge effective length
11.1 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
VC1103023N
Name Identifying order number
261364 HB7120-1
RE Corner radius
0.2 mm
S Insert thickness
3.18 mm
S1 Insert thickness total
3.18 mm
STDDES Standard designation
VCMT110302
TCE Tipped cutting edge code
B
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.003 kg
