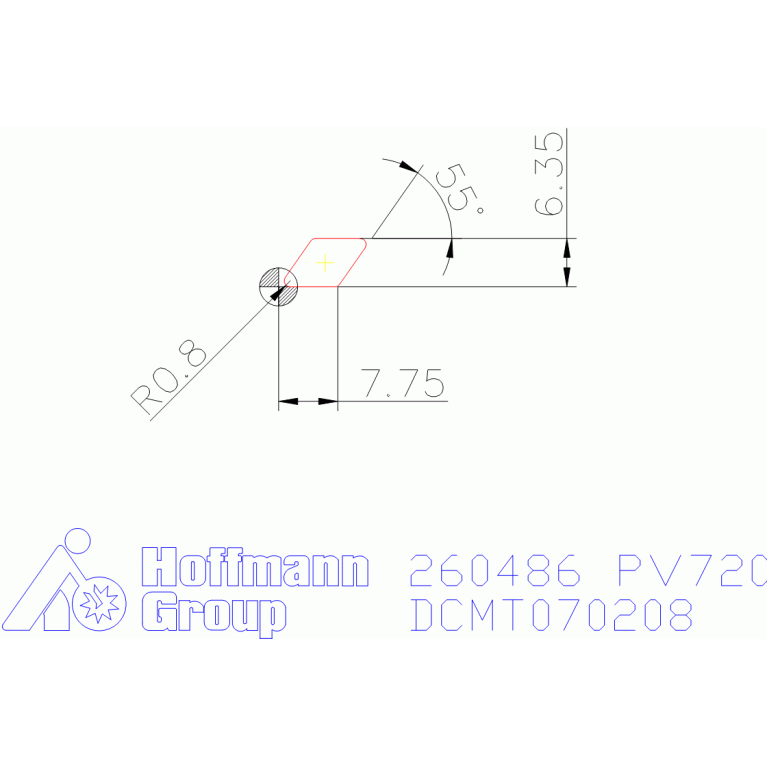

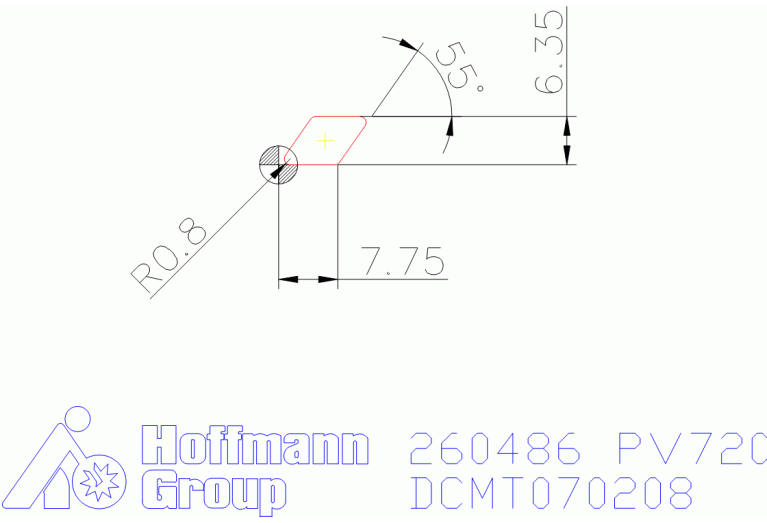

Главная Каталог продукции Toolunited 10 201-03 - Rhombic insert 260486 PV720

260486 PV720

Артикул: 260486 PV720

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

ANN Clearance angle minor

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

MEGACOAT NANO

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

DC0702083N

EPSR Insert included angle

55 Degree

FamilyProducts

DCMT 070208

GAN Insert rake angle

17 Degree

GRDMFG Grade manufacturers designation

PV720

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

7.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC0702083N

Name Identifying order number

260486 PV720

RE Corner radius

0.8 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

DCMT070208

STDDESAnsi Standard designation ANSI

DCMT21.52

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.002 kg
