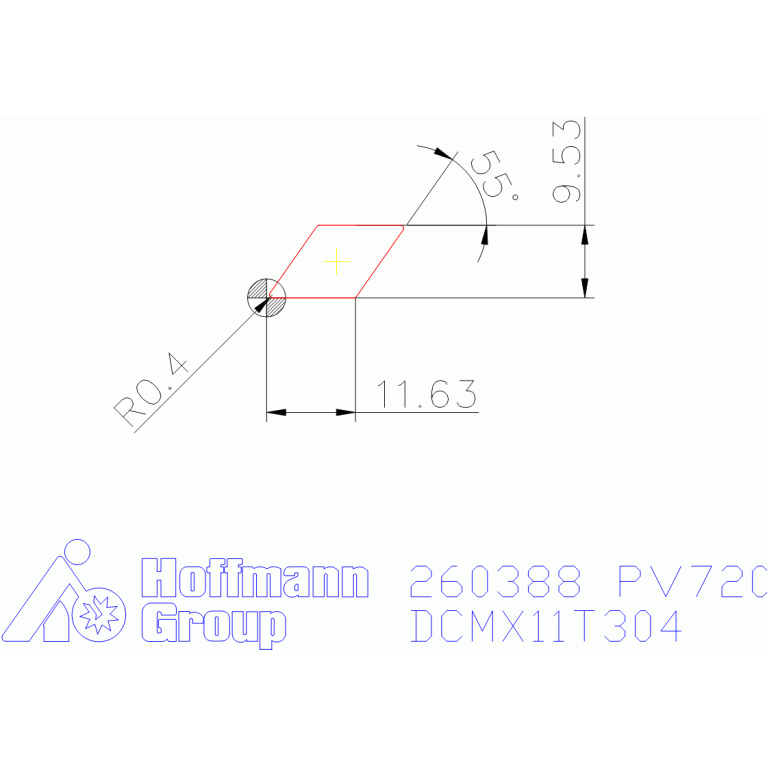

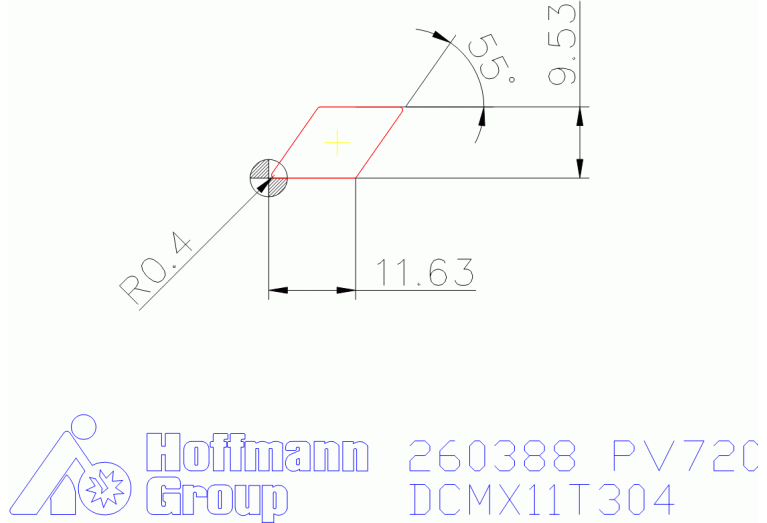

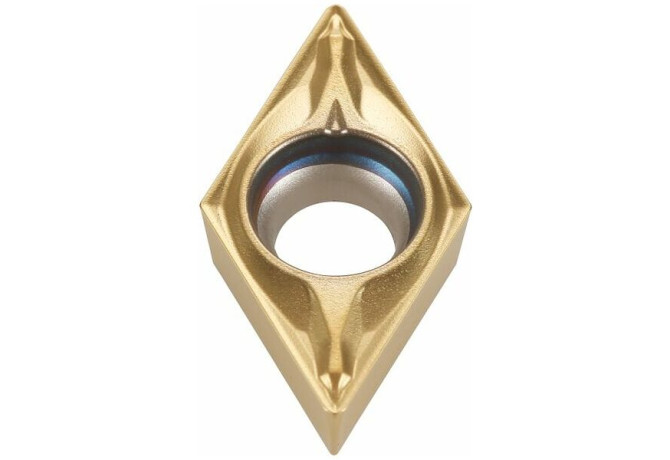

Главная Каталог продукции Toolunited 10 201-03 - Rhombic insert 260388 PV720

260388 PV720

Артикул: 260388 PV720

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

ANN Clearance angle minor

0 Degree

COATN Coating

MEGACOAT NANO

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

DC11T3083N

EPSR Insert included angle

55 Degree

FamilyProducts

DCMX 11T308-Wiper

GAN Insert rake angle

10 Degree

GRDMFG Grade manufacturers designation

PV720

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC11T3083N

Name Identifying order number

260388 PV720

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

DCMX11T308-Wiper

STDDESAnsi Standard designation ANSI

DCMX32.52-WIPER

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.005 kg
