Главная Каталог продукции Toolunited 10 201-03 - Rhombic insert 260384 PDL025

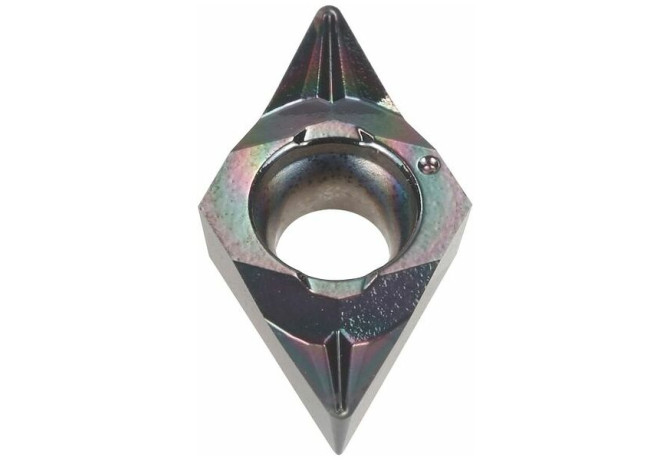

260384 PDL025

Артикул: 260384 PDL025

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

ANN Clearance angle minor

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

DC11T3013N

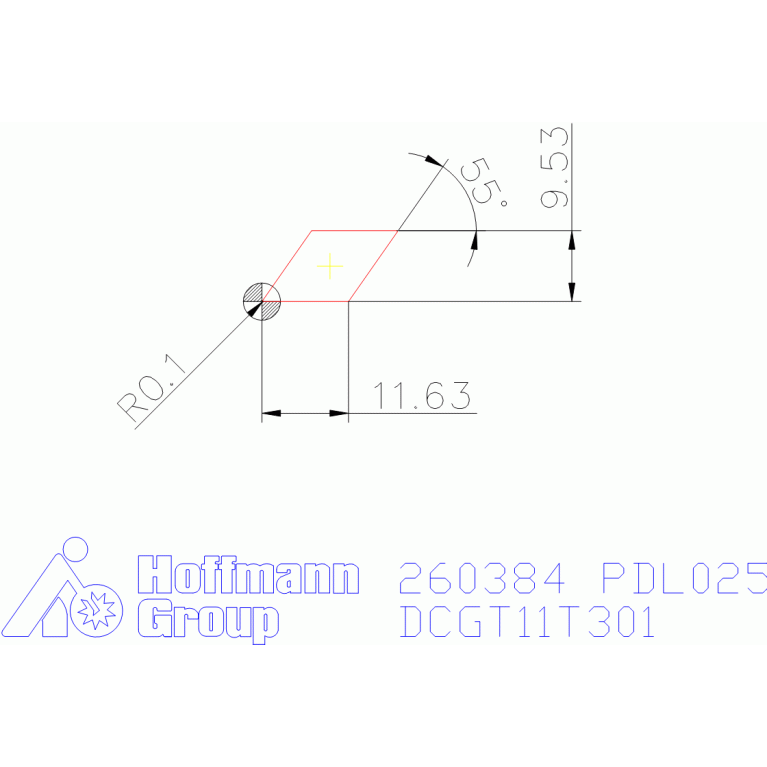

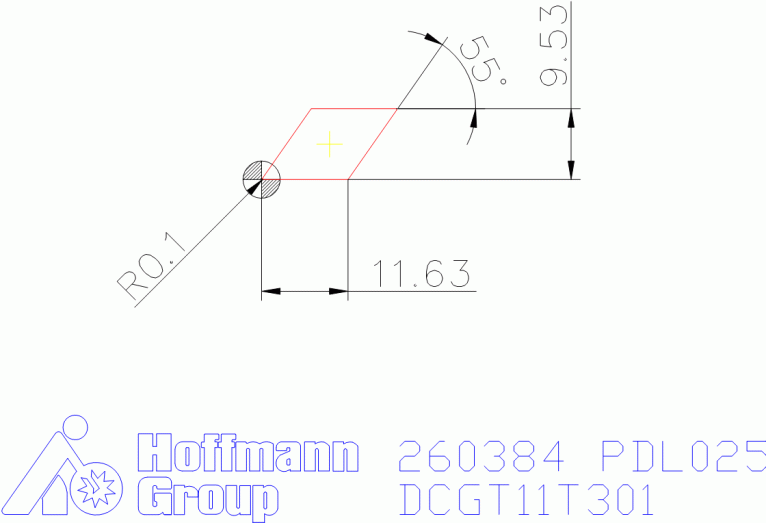

EPSR Insert included angle

55 Degree

FamilyProducts

DCGT 11T301

GRDMFG Grade manufacturers designation

PDL025

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC11T3013N

Name Identifying order number

260384 PDL025

RE Corner radius

0.1 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

DCGT11T301

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.005 kg
