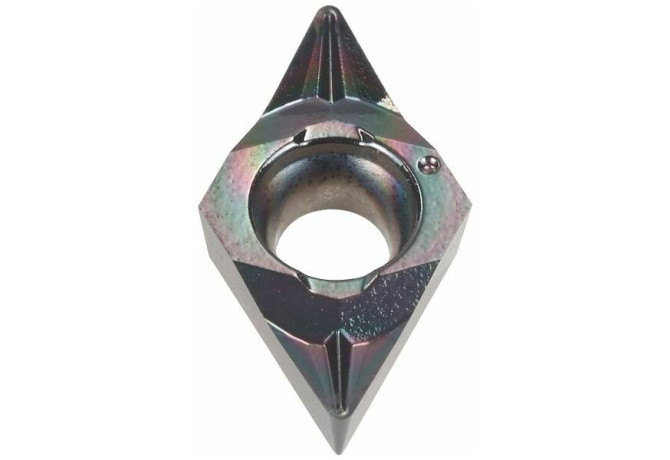

Главная Каталог продукции Toolunited 10 201-03 - Rhombic insert 260381 PDL025

260381 PDL025

Артикул: 260381 PDL025

В наличии

В корзину

Описание

Характеристики

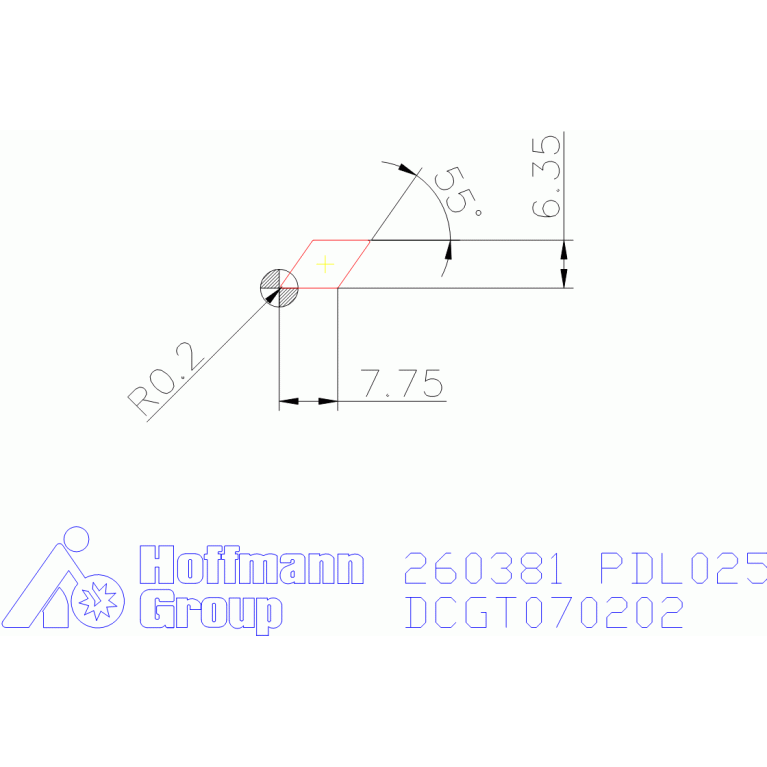

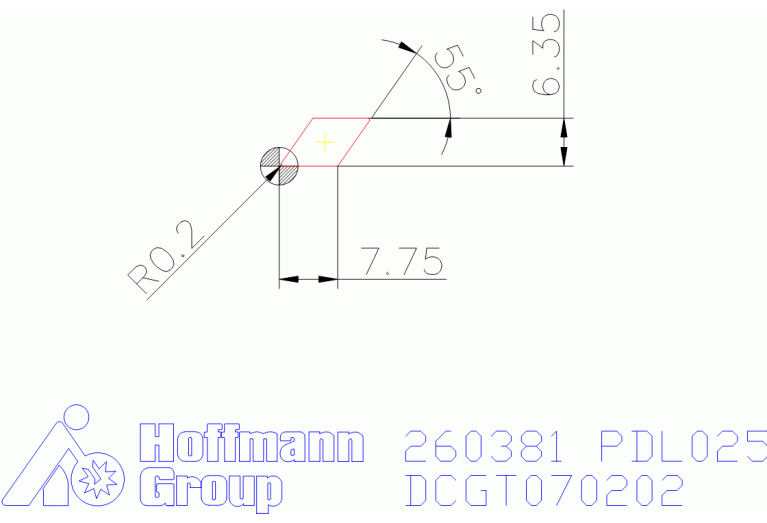

AN Clearance angle major

7 Degree

ANN Clearance angle minor

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

DC0702023N

EPSR Insert included angle

55 Degree

FamilyProducts

DC.T 070202

GAN Insert rake angle

15 Degree

GRDMFG Grade manufacturers designation

PDL025

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

7.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC0702023N

Name Identifying order number

260381 PDL025

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

DCMT070202

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.002 kg
