Главная Каталог продукции Toolunited 10 201-03 - Rhombic insert 260204 PV720

260204 PV720

Артикул: 260204 PV720

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

ANN Clearance angle minor

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

MEGACOAT NANO

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

CC1204083N

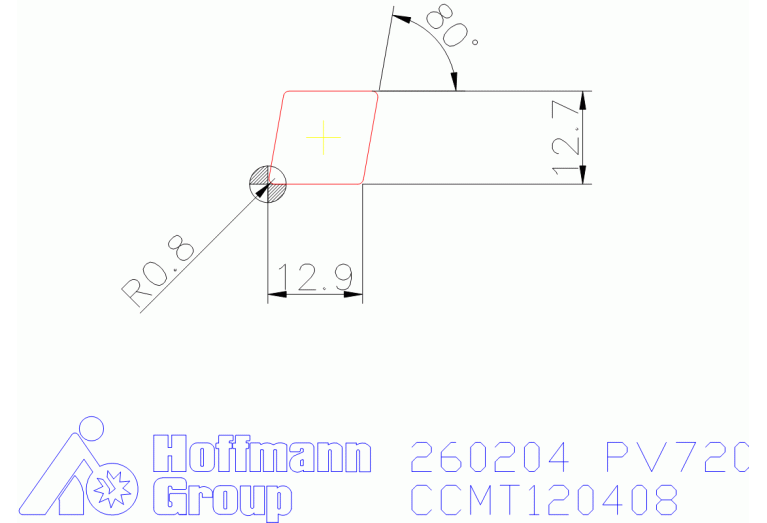

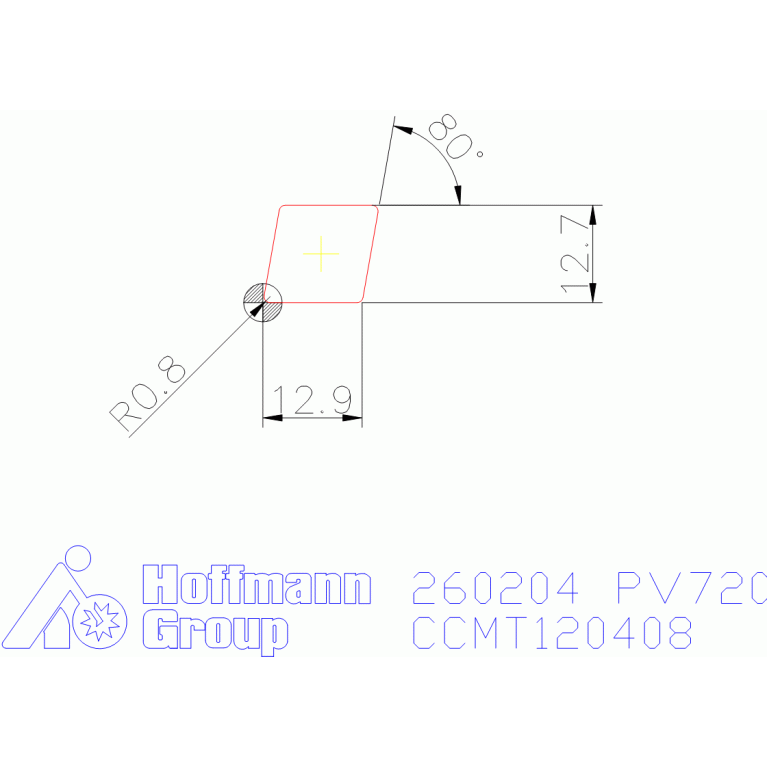

EPSR Insert included angle

80 Degree

FamilyProducts

CCMT 120408

GAN Insert rake angle

17 Degree

GRDMFG Grade manufacturers designation

PV720

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

12.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC1204083N

Name Identifying order number

260204 PV720

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CCMT120408

STDDESAnsi Standard designation ANSI

CCMT432

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.009 kg
