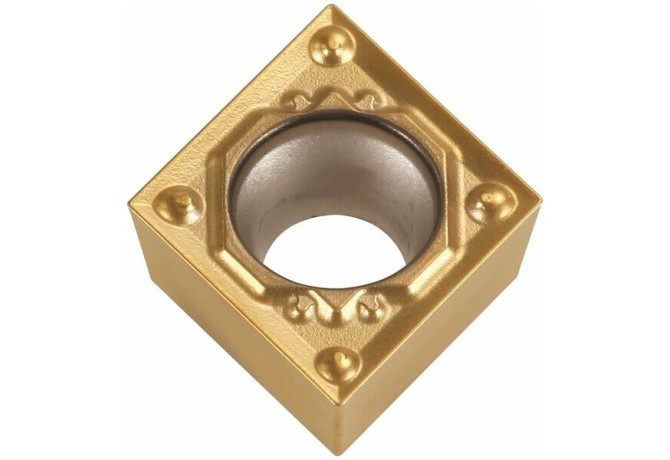

260096 PV720

Артикул: 260096 PV720

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

ANN Clearance angle minor

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

MEGACOAT NANO

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

CC09T3023N

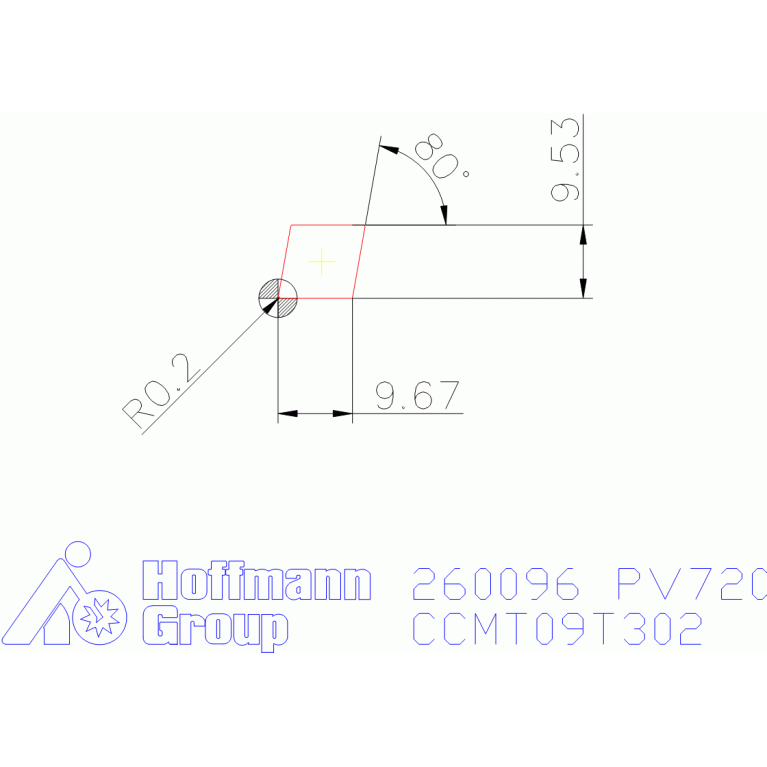

EPSR Insert included angle

80 Degree

FamilyProducts

CC.T 09T302

GAN Insert rake angle

15 Degree

GRDMFG Grade manufacturers designation

PV720

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.67 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC09T3023N

Name Identifying order number

260096 PV720

RE Corner radius

0.2 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

CCMT09T302

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.004 kg
