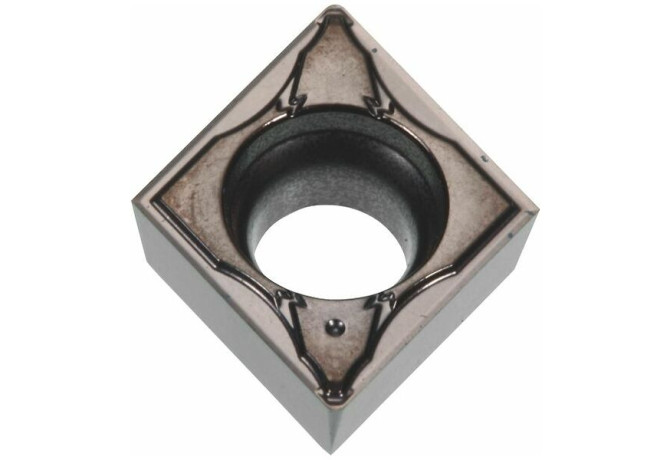

260094 PR1425

Артикул: 260094 PR1425

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

ANN Clearance angle minor

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

MEGACOAT

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

CC0602043N

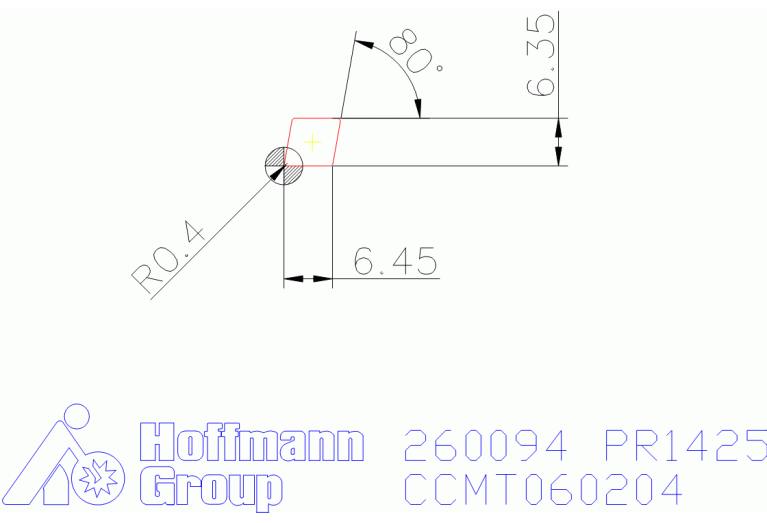

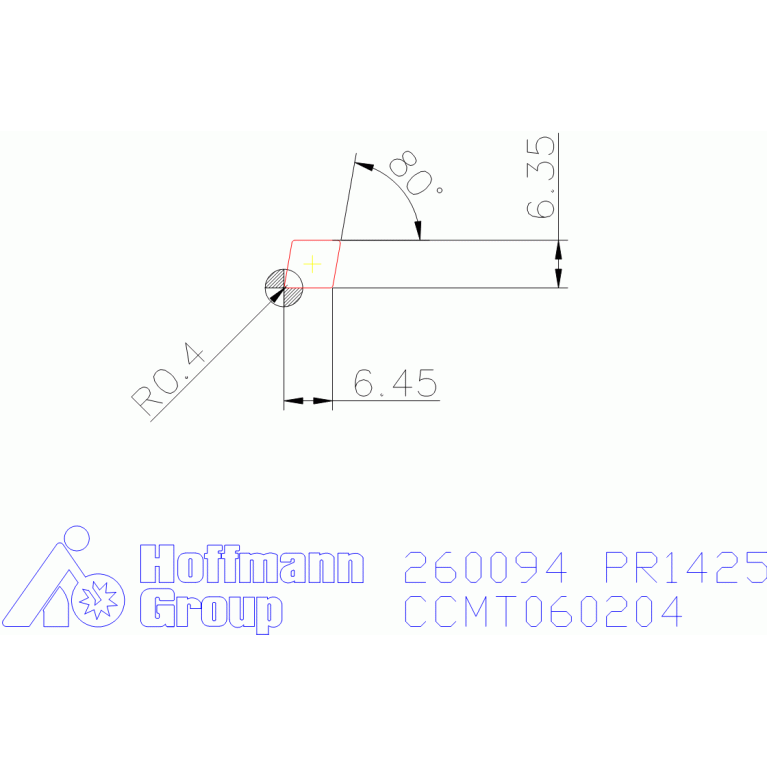

EPSR Insert included angle

80 Degree

FamilyProducts

CCMT 060204-Wiper

GAN Insert rake angle

10 Degree

GRDMFG Grade manufacturers designation

PR1425

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

6.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC0602043N

Name Identifying order number

260094 PR1425

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CCMT060204-Wiper

STDDESAnsi Standard designation ANSI

CCMT21.51-WIPER

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.001 kg
