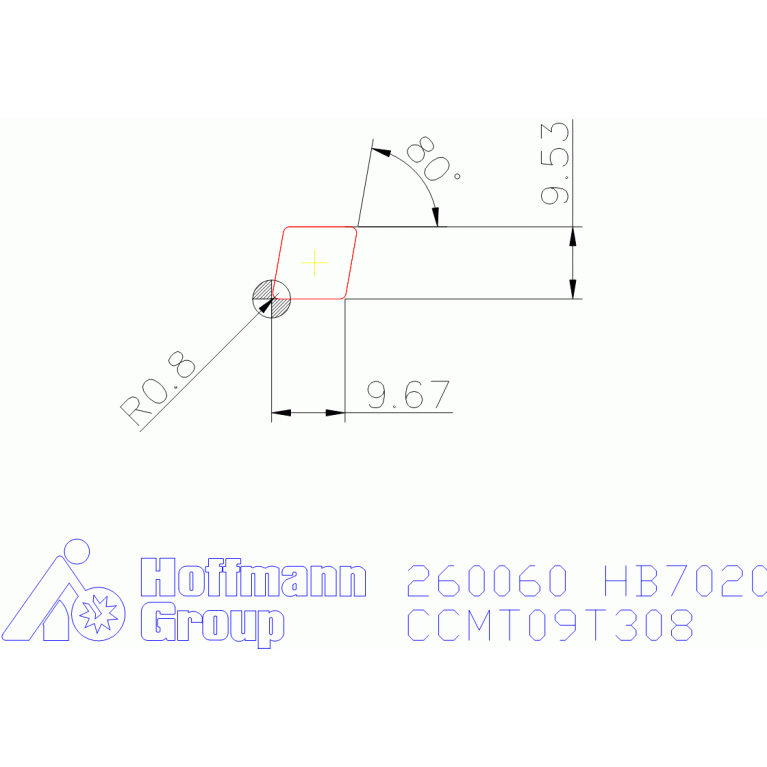

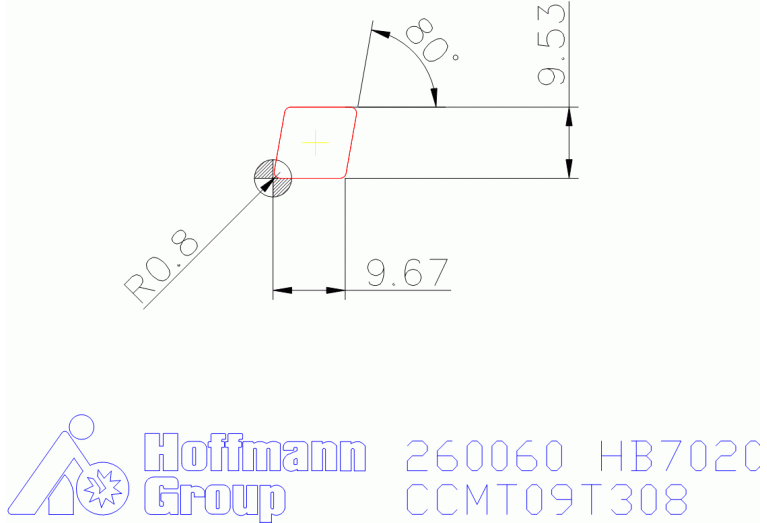

Главная Каталог продукции Toolunited 10 201-03 - Rhombic insert 260060 HB7020

260060 HB7020

Артикул: 260060 HB7020

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

ANN Clearance angle minor

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

TiCN / Al2O3

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

CC09T3083N

EPSR Insert included angle

80 Degree

FamilyProducts

CCMT 09T308

GRDMFG Grade manufacturers designation

HB7020

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.67 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC09T3083N

Name Identifying order number

260060 HB7020

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

CCMT09T308

STDDESAnsi Standard designation ANSI

CCMT32.52

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.002 kg
