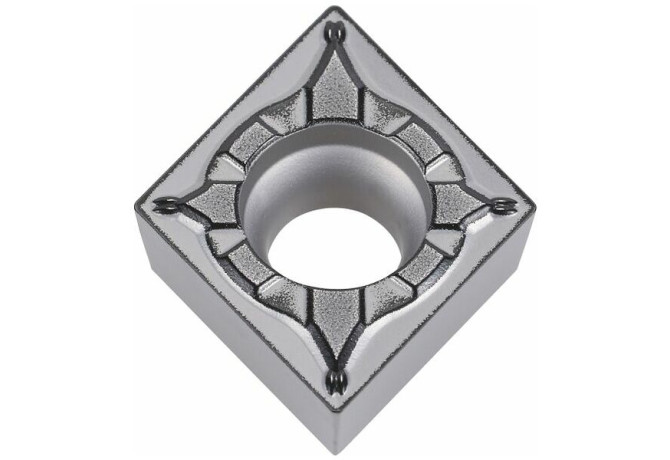

Главная Каталог продукции Toolunited 10 201-03 - Rhombic insert 260050 HB7120-1

260050 HB7120-1

Артикул: 260050 HB7120-1

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

ANN Clearance angle minor

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

TiCN/Al2O3 CVD layer

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

CC0602023N

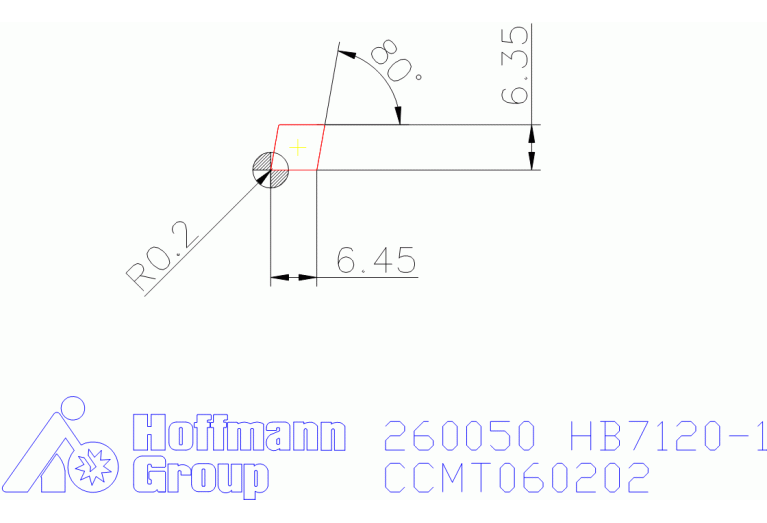

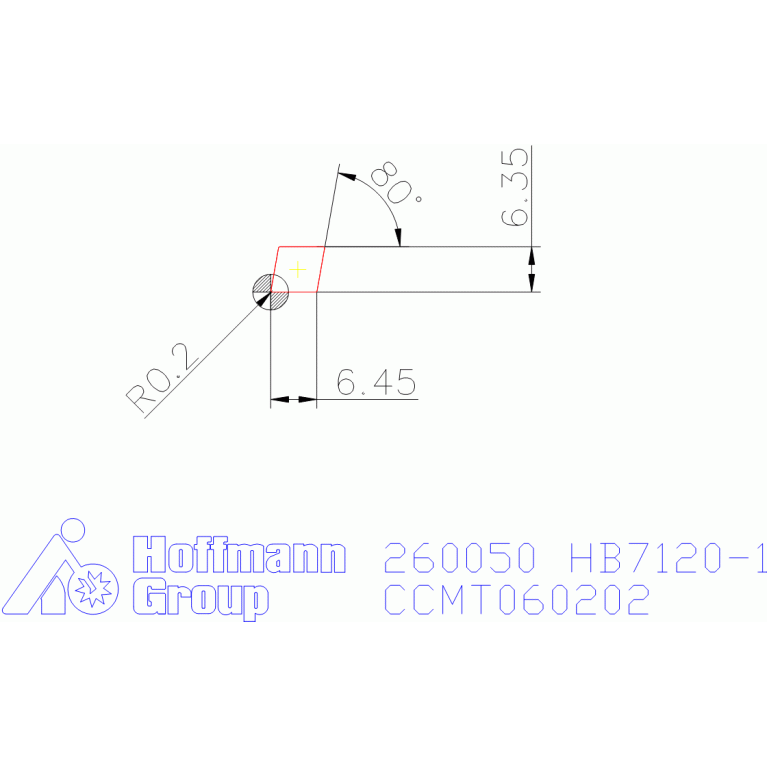

EPSR Insert included angle

80 Degree

FamilyProducts

CCMT 060202

GRDMFG Grade manufacturers designation

HB7120-1

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

6.4 mm

LE Cutting edge effective length

6.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC0602023N

Name Identifying order number

260050 HB7120-1

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CCMT060202

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.001 kg
