250760 HB7120-1
250760 HB7120-1
Артикул:
250760 HB7120-1
В наличии
Характеристики
AN Clearance angle major
0 Degree
ANN Clearance angle minor
0 Degree
CB Chip breaker face count
2 - With chip breaker on both sides
COATN Coating
TiCN/Al2O3 CVD layer
COMPC Company code
HOG - Hoffmann Group
CSP Coolant supply property
0 - Without coolant supply
DIN
DN1506042N

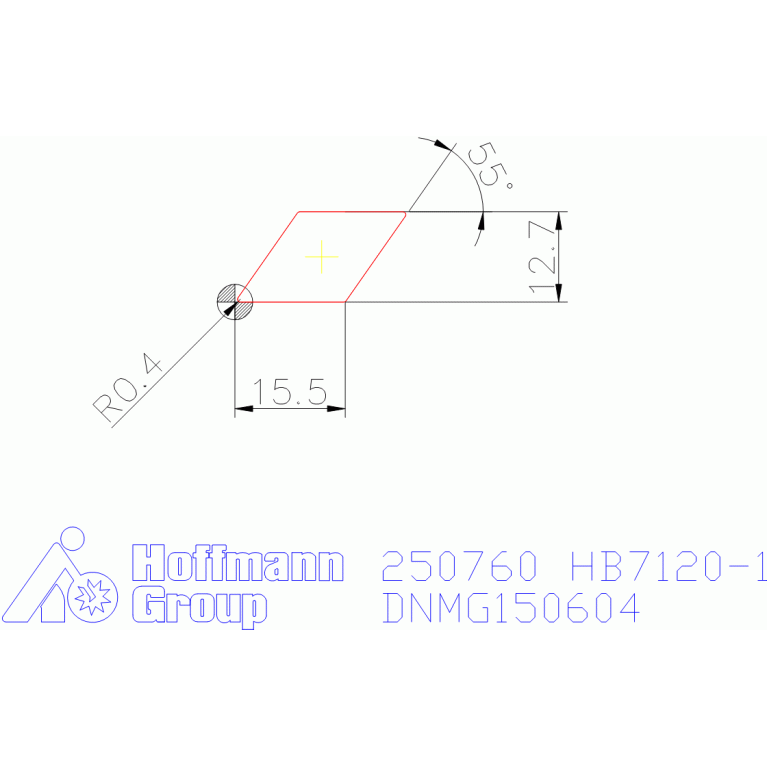

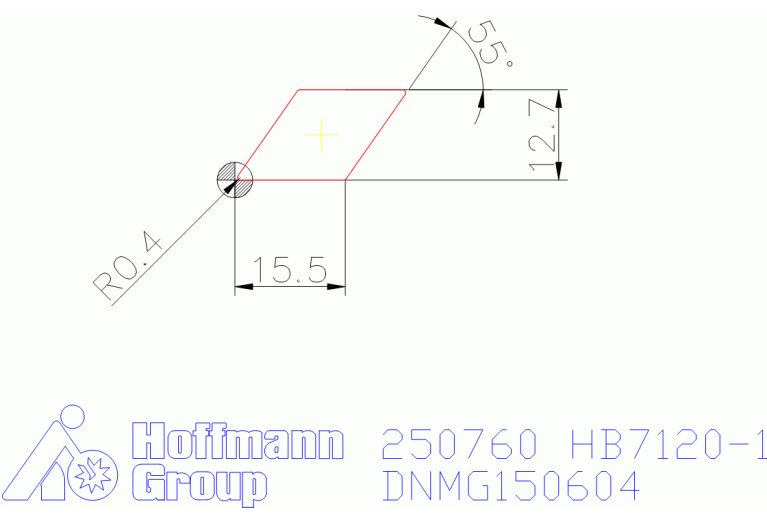

EPSR Insert included angle
55 Degree
FamilyProducts
DNMG 150604
GRDMFG Grade manufacturers designation
HB7120-1
IC Inscribed circle diameter
12.7 mm
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
15.5 mm
LE Cutting edge effective length
15.5 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
DN1506042N
Name Identifying order number
250760 HB7120-1
RE Corner radius
0.4 mm
S Insert thickness
6.35 mm
S1 Insert thickness total
6.35 mm
STDDES Standard designation
DNMG150604
STDDESAnsi Standard designation ANSI
DNMG441
TCE Tipped cutting edge code
L
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.016 kg
