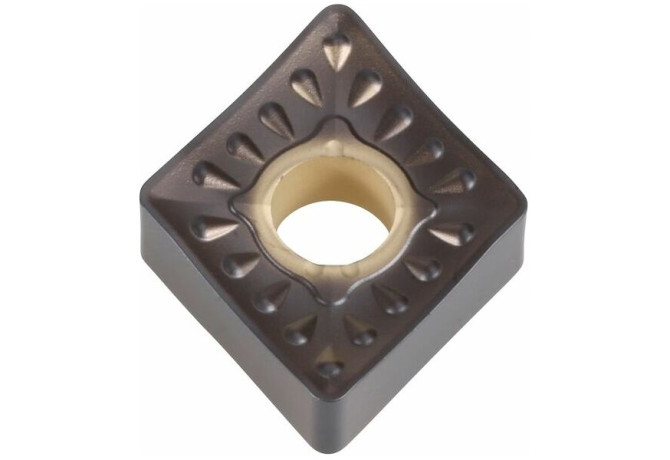

250466 HB7035-1
250466 HB7035-1
Артикул:
250466 HB7035-1
В наличии
Характеристики
AN Clearance angle major
0 Degree
ANN Clearance angle minor
0 Degree
CB Chip breaker face count
1 - With chip breaker one-side
COATN Coating
TiCN / Al2O3-Ti Verb
COMPC Company code
HOG - Hoffmann Group
CSP Coolant supply property
0 - Without coolant supply
DIN
CN1906242N

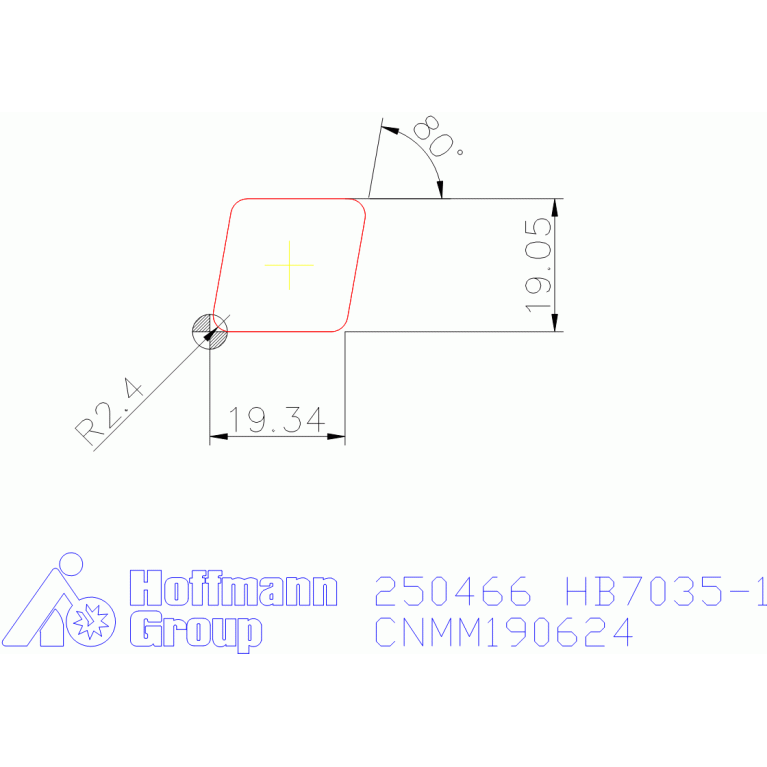

EPSR Insert included angle
80 Degree
FamilyProducts
CNMM 190624
GAN Insert rake angle
6 Degree
GRDMFG Grade manufacturers designation
HB7035-1
IC Inscribed circle diameter
19.05 mm
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
19 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CN1906242N
Name Identifying order number
250466 HB7035-1
RE Corner radius
2.4 mm
S Insert thickness
6.35 mm
S1 Insert thickness total
6.35 mm
STDDES Standard designation
CNMM190624
STDDESAnsi Standard designation ANSI
CNMM646
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.03 kg
