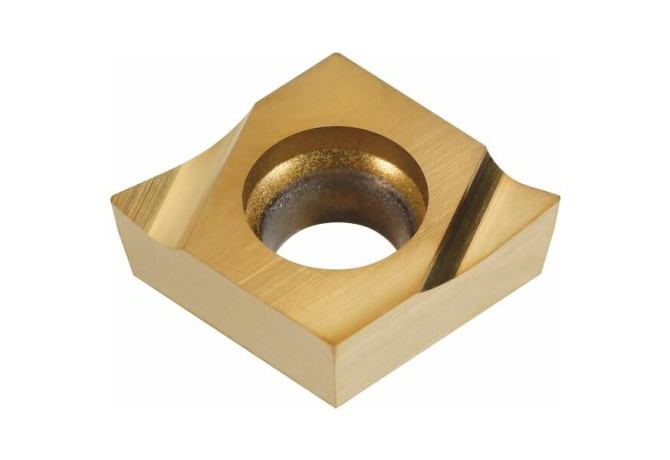

Главная Каталог продукции Toolunited 10 201-03 - Rhombic insert 237698 HB3010

237698 HB3010

Артикул: 237698 HB3010

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

ANN Clearance angle minor

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

CC09T3043L

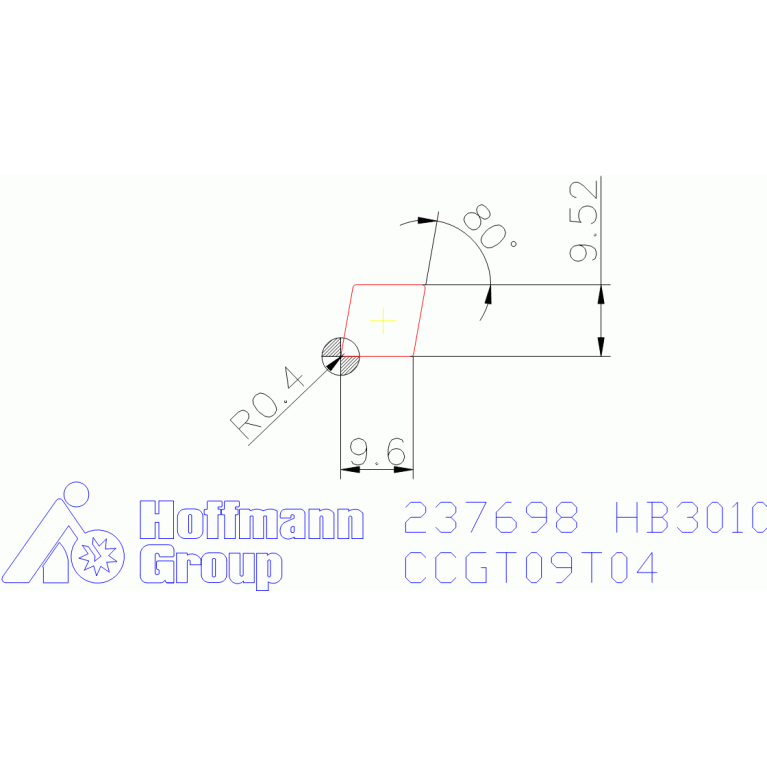

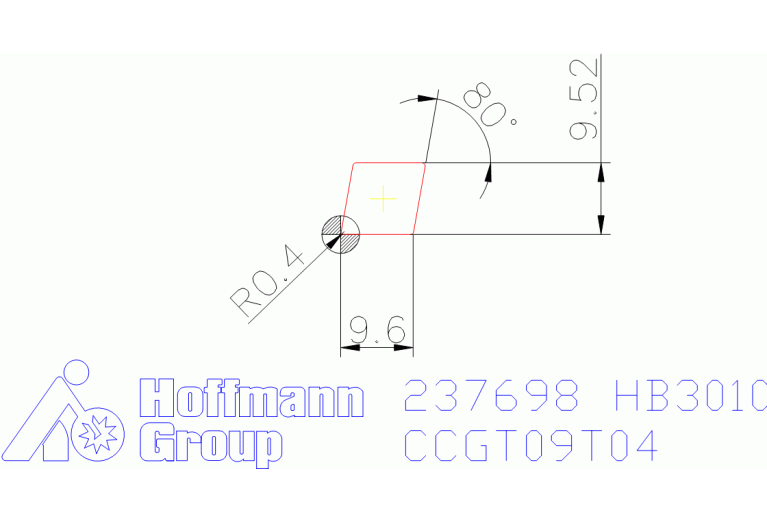

EPSR Insert included angle

80 Degree

FamilyProducts

CCGT 09T304L

GAN Insert rake angle

30 Degree

GRDMFG Grade manufacturers designation

HB3010

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.67 mm

LE Cutting edge effective length

3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC09T3043L

Name Identifying order number

237698 HB3010

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

CCGT09T304L

STDDESAnsi Standard designation ANSI

CCGT32.51L

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
