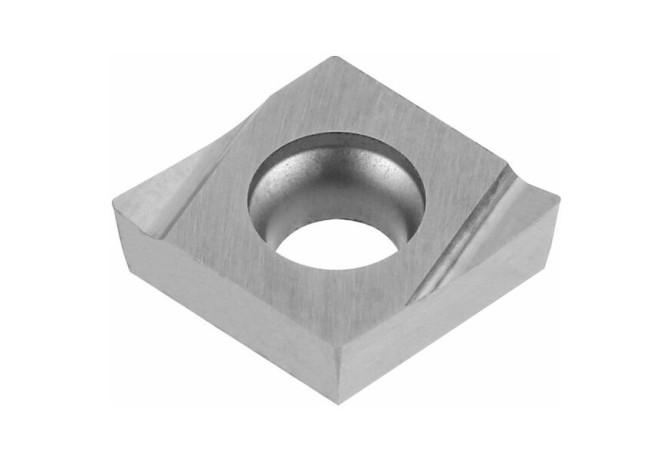

237695 CU3515
237695 CU3515
Артикул:
237695 CU3515
В наличии
Характеристики
AN Clearance angle major
7 Degree
ANN Clearance angle minor
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
COATN Coating
TiCN
COMPC Company code
HOG - Hoffmann Group
CSP Coolant supply property
0 - Without coolant supply
DIN
CC0602023L

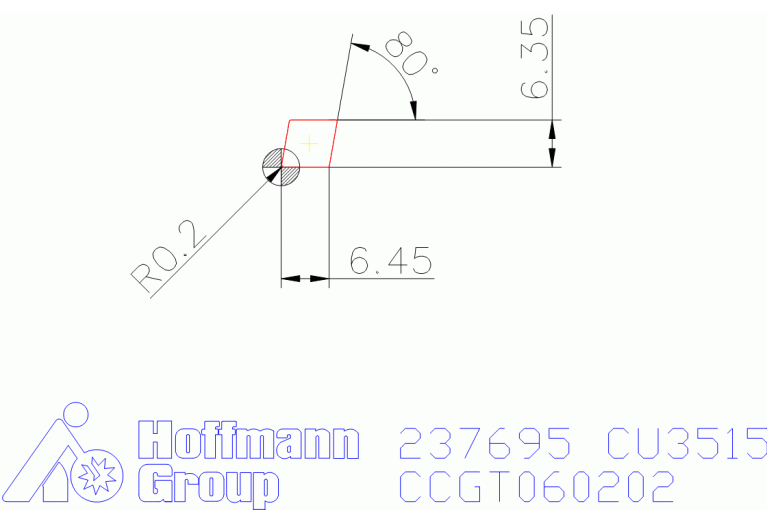

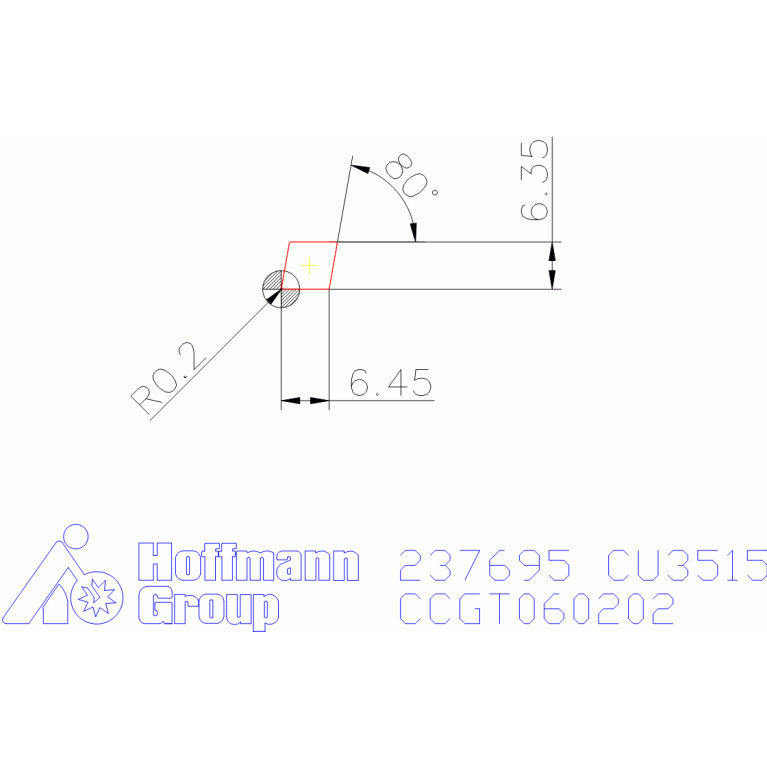

EPSR Insert included angle
80 Degree
FamilyProducts
CCGT 060202L-SS
GAN Insert rake angle
30 Degree
GRDMFG Grade manufacturers designation
CU3515
IC Inscribed circle diameter
6.35 mm
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
L - Left
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
6.45 mm
LE Cutting edge effective length
2 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CC0602023L
Name Identifying order number
237695 CU3515
RE Corner radius
0.2 mm
S Insert thickness
2.38 mm
S1 Insert thickness total
2.38 mm
STDDES Standard designation
CCGT060202L
TCE Tipped cutting edge code
B
TCINS Tolerance class insert
G
Working process
No working processes available
WT Weight of item
0.001 kg
