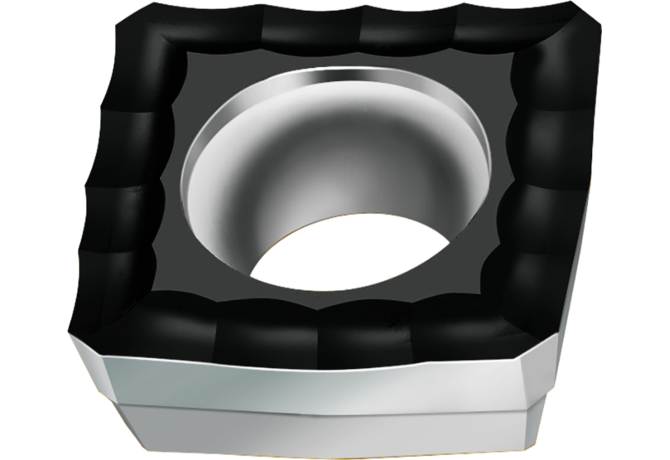

WP337-116/20-BS2 RM35C
WP337-116/20-BS2 RM35C
Артикул:
7888420
В наличии
Характеристики
AN Clearance angle major
14 Degree
CBMD Chip breaker manufacturers designation
E67
CECC Cutting edge condition code
E - Rounded
CHW Corner chamfer width
0.5 mm
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
2.8 mm
Delivery state valid from
12/1/2023
DIN
W-P28401$$3RB$$$$
EPSR Insert included angle
90 Degree
FamilyProducts
Square P284..
GRDMFG Grade manufacturers designation
RM35C
IC Inscribed circle diameter
6.35 mm
ID Technical product number
7888420
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 / J441
ISISO ISO property
0
ISO
WR$$P28401$$3RB$$$$
ISYC Subclass
201-02 - Square insert

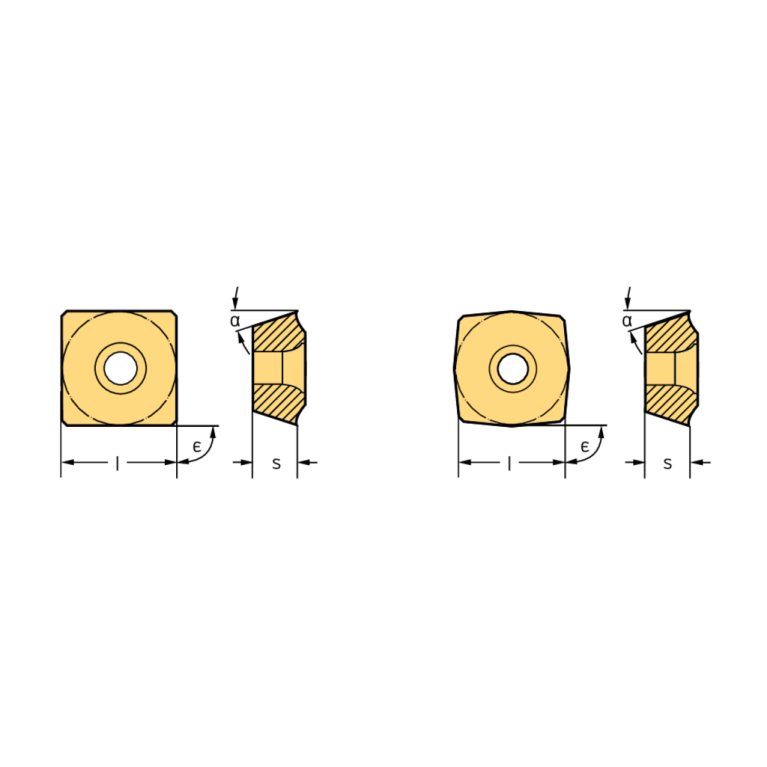

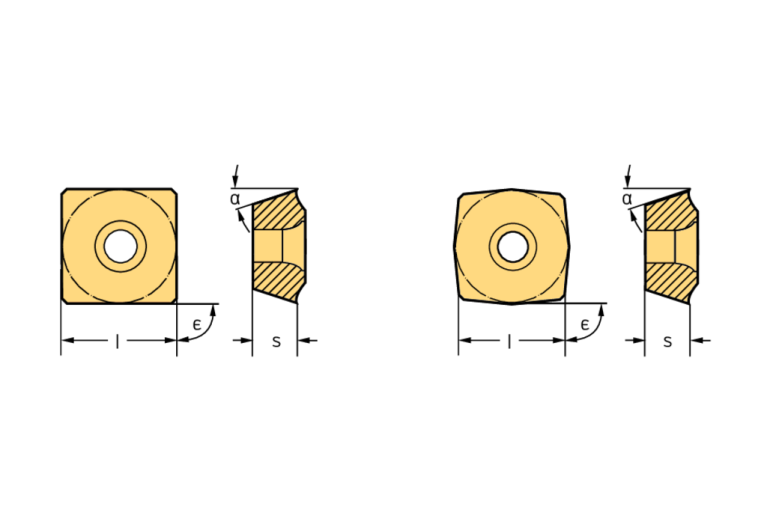

L Cutting edge length
6.35 mm
LOC-03 ISO
WR$$P28401$$3RB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
W-P28401$$3RB$$$$
Name Identifying order number
WP337-116/20-BS2 RM35C
S Insert thickness
2.38 mm
S1 Insert thickness total
2.38 mm
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
BVB - Drilling
WT Weight of item
0.002 kg
