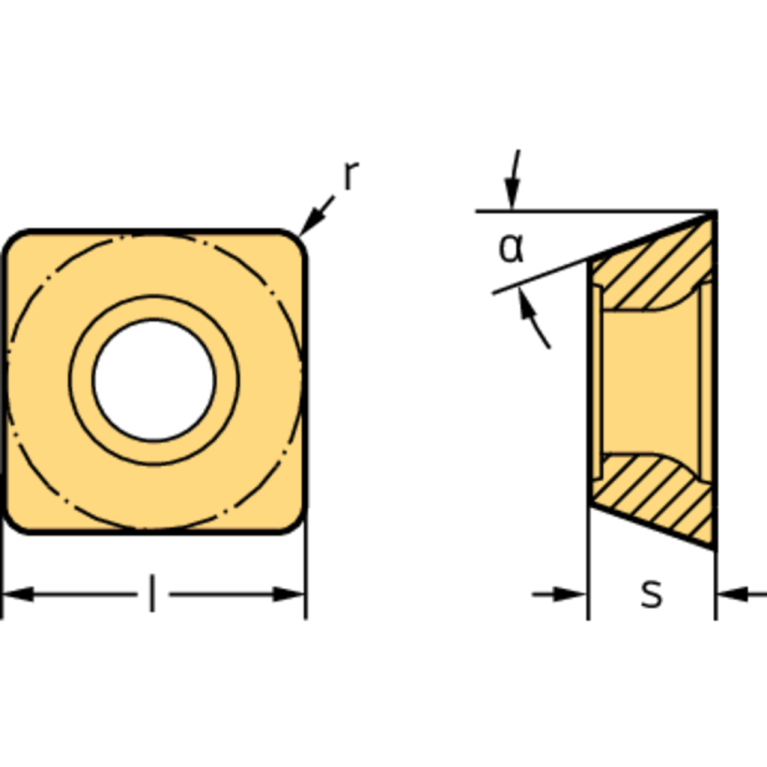

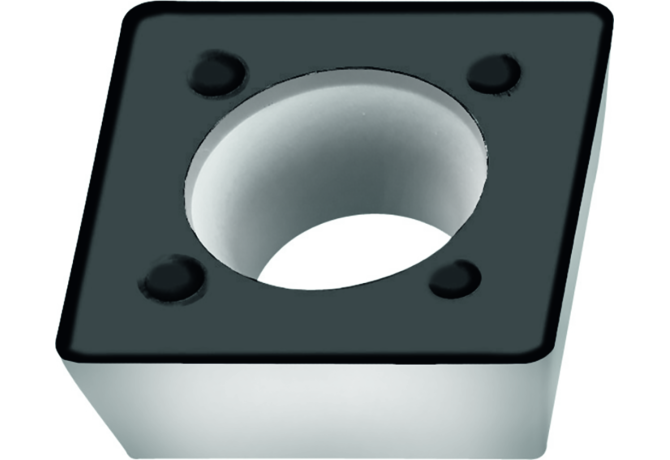

SPMW09T308T-A27 WKP25

Артикул: 5092224

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

A27

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

12/1/2023

DIN

W-SP09T3083NB$$08

EPSR Insert included angle

90 Degree

FamilyProducts

Positive square SPMW

GRDMFG Grade manufacturers designation

WKP25

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5092224

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$SP09T3083NB$$08

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

LOC-03 ISO

WR$$SP09T3083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-SP09T3083NB$$08

Name Identifying order number

SPMW09T308T-A27 WKP25

NameAnsi Identifying order number inch alternative

SPMW3(2.5)2T-A27 WKP25

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SPMW09T308T

STDDESAnsi Standard designation ANSI

SPMW32.52T

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

FPL - Face milling

WT Weight of item

0.003 kg
