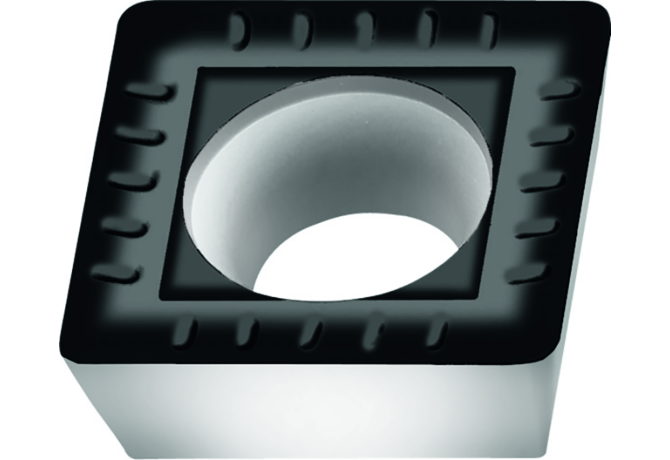

SPMT120408-D51 WXP45
SPMT120408-D51 WXP45
Артикул:
5036814
В наличии
Характеристики

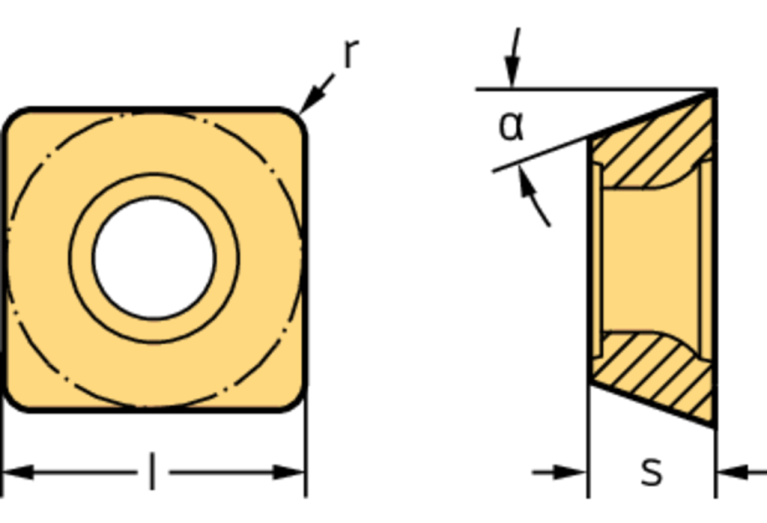

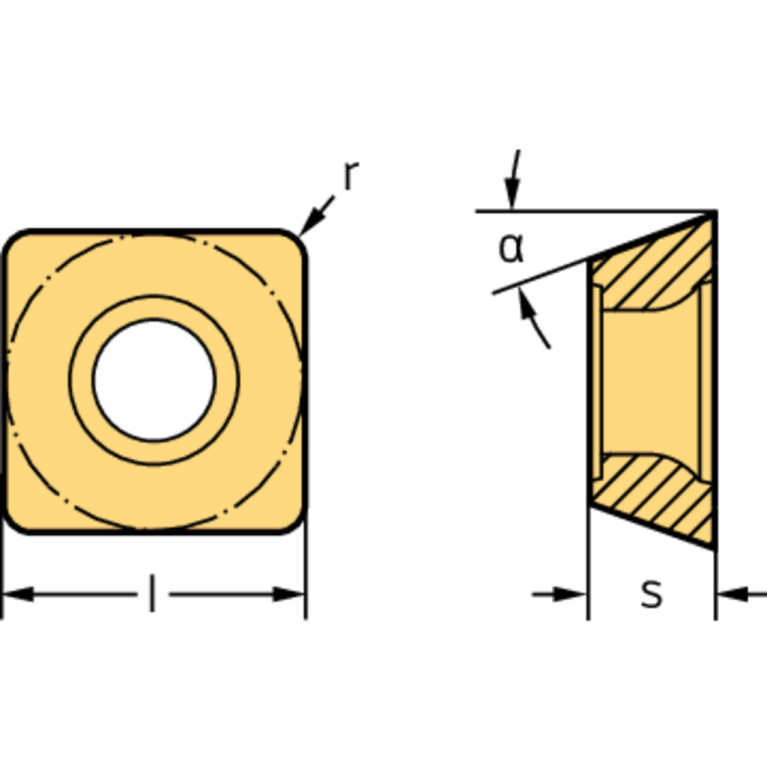

AN Clearance angle major
11 Degree
CBMD Chip breaker manufacturers designation
D51
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating
TiAlN/TiN
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
5.5 mm
Delivery state valid from
12/1/2023
DIN
W-SP1204083NB$$08
EPSR Insert included angle
90 Degree
FamilyProducts
Positive square SPMT
GRDMFG Grade manufacturers designation
WXP45
IC Inscribed circle diameter
12.7 mm
ID Technical product number
5036814
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
WR$$SP1204083NB$$08
ISYC Subclass
201-02 - Square insert
L Cutting edge length
12.7 mm
LOC-03 ISO
WR$$SP1204083NB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
W-SP1204083NB$$08
Name Identifying order number
SPMT120408-D51 WXP45
NameAnsi Identifying order number inch alternative
SPMT432-D51 WXP45
NOI Insert index count
4
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
SPMT120408
STDDESAnsi Standard designation ANSI
SPMT432
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
FPL - Face milling
WT Weight of item
0.007 kg
