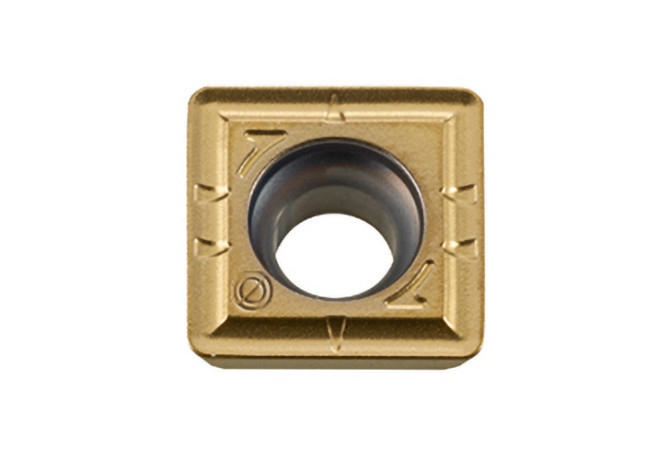

SPGX090408WG IN2505

Артикул: 6130212

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11.5 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

TiAIN+TiN

COMPC Company code

IL - Ingersoll

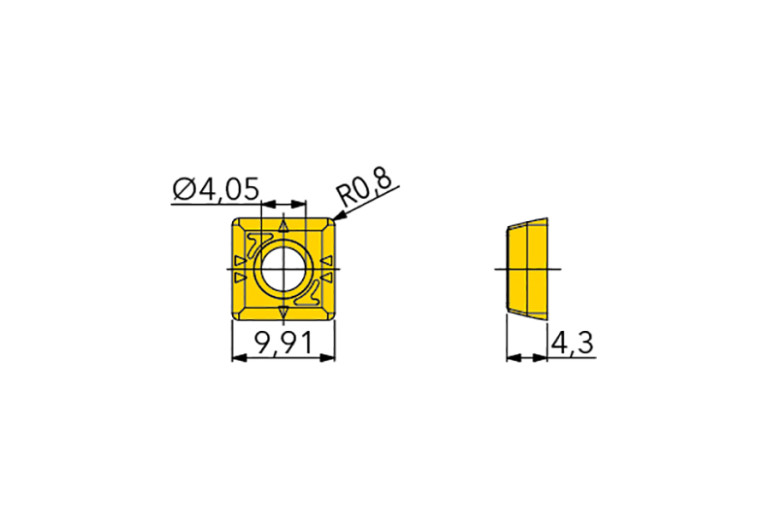

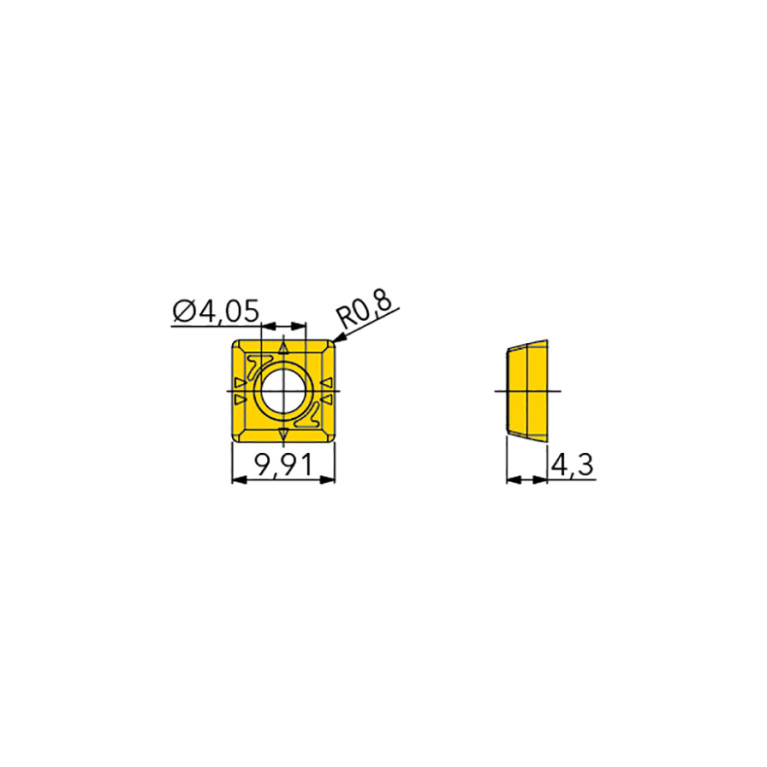

D1 Fixing hole diameter

4.05 mm

Delivery state

LL - Stock limited

DIN

SP0904 7N

EPSR Insert included angle

90 Degree

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

9.91 mm

ID Technical product number

6130212

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

8.31 mm

LE Cutting edge effective length

9.11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP0904 7N

Name Identifying order number

SPGX090408WG IN2505

RE Corner radius

0.8 mm

S Insert thickness

4.3 mm

S1 Insert thickness total

4.3 mm

STDDES Standard designation

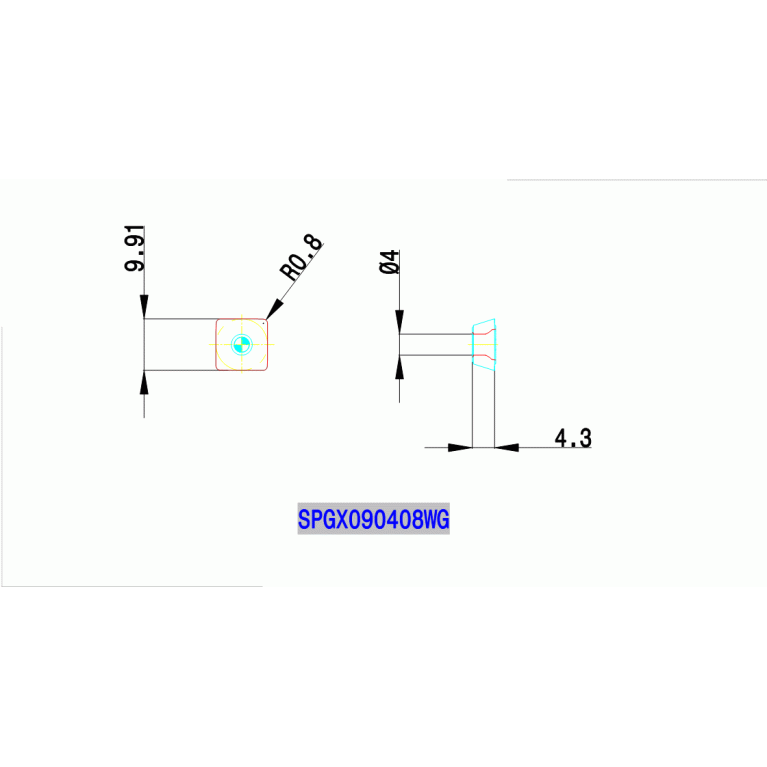

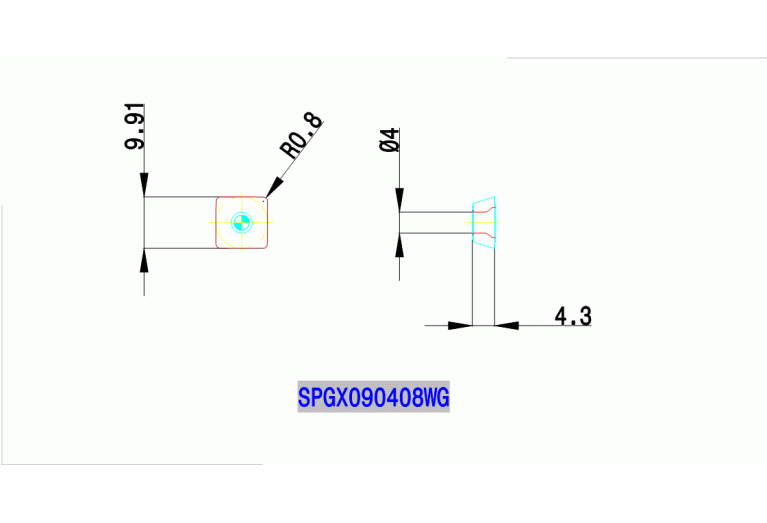

SPGX090408WG

STDDESAnsi Standard designation ANSI

SPGX332WG

TCINS Tolerance class insert

Working process

No working processes available
