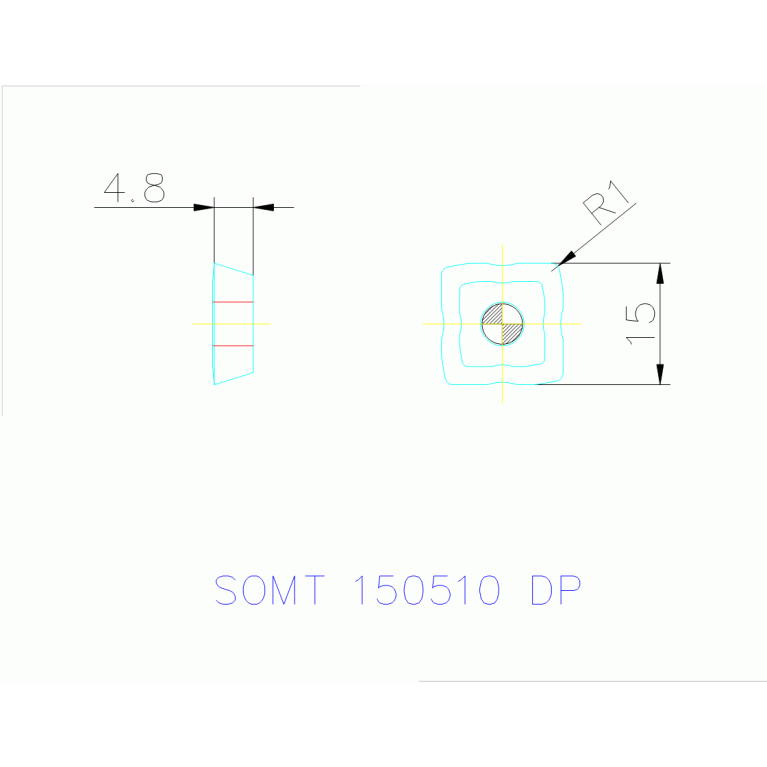

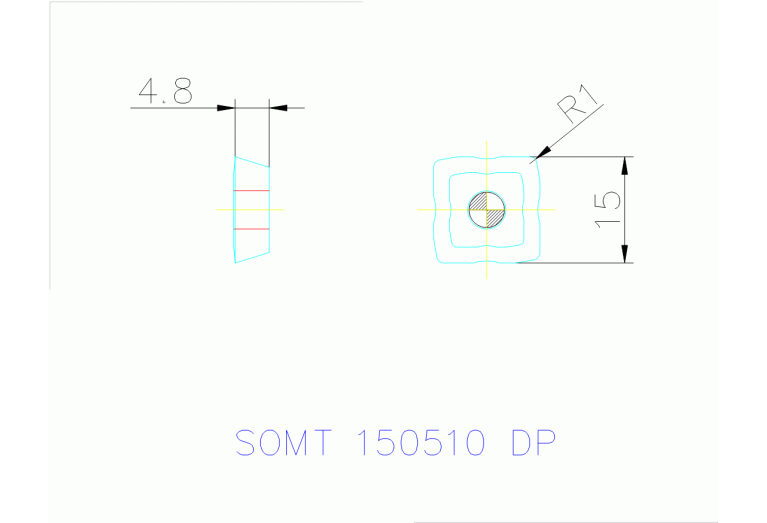

SOMT150510SK IN2505

Артикул: 5524211

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

10 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

TiAIN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.4 mm

Delivery state

LL - Stock limited

DIN

SO1505 3N

EPSR Insert included angle

90 Degree

FamilyProducts

Quad-Twist insert SOMT-SK

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

15 mm

ID Technical product number

5524211

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

13 mm

LE Cutting edge effective length

14 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO1505 3N

Name Identifying order number

SOMT150510SK IN2505

S Insert thickness

4.8 mm

S1 Insert thickness total

4.8 mm

STDDES Standard designation

SOMT150510

TCINS Tolerance class insert

Working process

No working processes available
