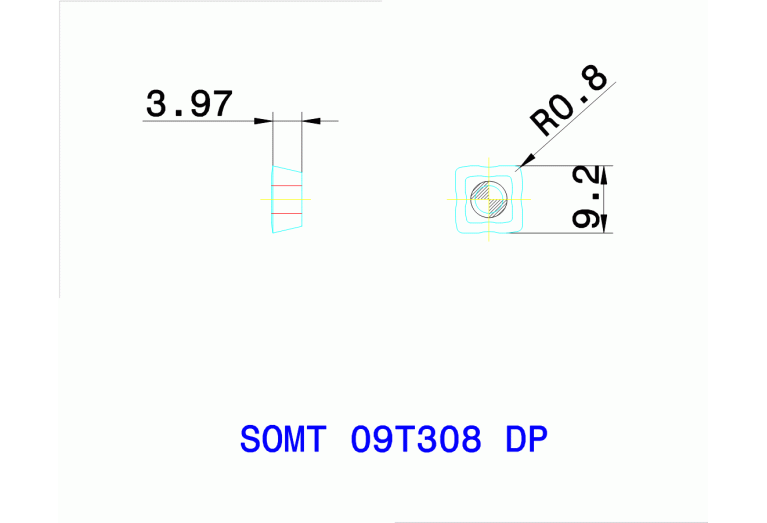

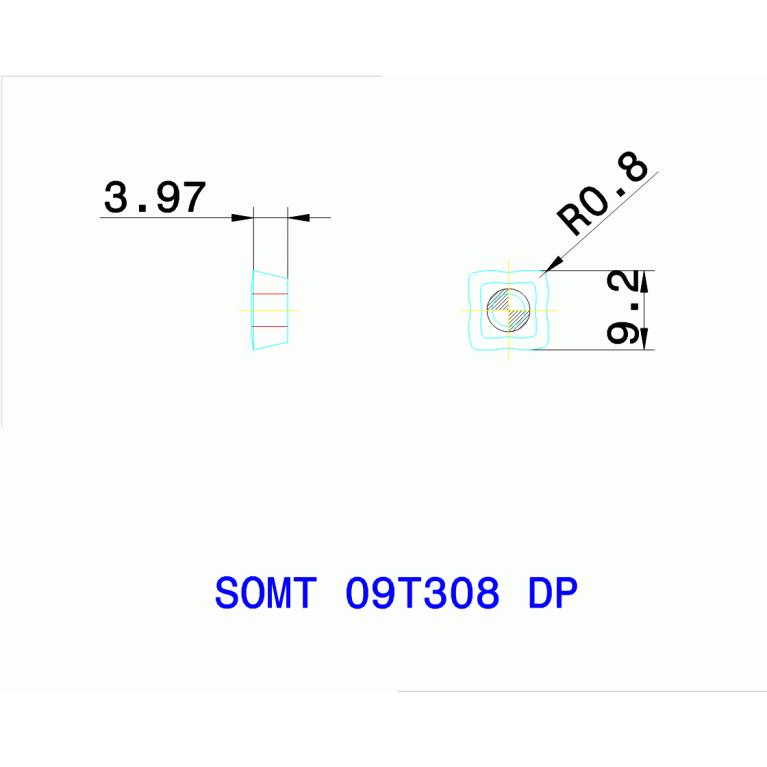

SOMT09T308SK IN2530
SOMT09T308SK IN2530
Артикул:
6136703
В наличии
Характеристики
AN Clearance angle major
10 Degree
CB Chip breaker face count
1 - With chip breaker one-side
COATN Coating
TiAlN+TiN
COMPC Company code
IL - Ingersoll
D1 Fixing hole diameter
3.8 mm
Delivery state
LL - Stock limited
DIN
SO09T3 3N
EPSR Insert included angle
90 Degree
FamilyProducts
Quad-Twist insert SOMT-SK
GRD2ND Standard designation of the grade 2nd application
M15-M30
GRD3RD Standard designation of the grade 3rd application
K20-K40
GRDMFG Grade manufacturers designation
IN2530
GRDPRIO Standard designation of the grade main application
P20-P40
IC Inscribed circle diameter
9.2 mm
ID Technical product number
6136703
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-02 - Square insert
L Cutting edge length
7.6 mm
LE Cutting edge effective length
8.4 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SO09T3 3N
Name Identifying order number
SOMT09T308SK IN2530
RE Corner radius
0.8 mm
S Insert thickness
3.97 mm
S1 Insert thickness total
3.97 mm
STDDES Standard designation
SOMT09T308
STDDESAnsi Standard designation ANSI
SOMT32.52
TCINS Tolerance class insert
M
Working process
No working processes available
