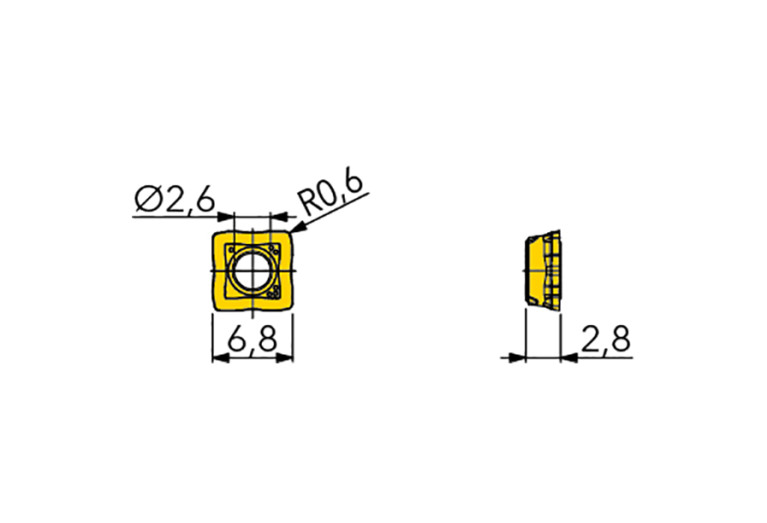

SOMT070306SK IN2530

Артикул: 6136701

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

10 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

TiAlN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

2.6 mm

Delivery state

LL - Stock limited

DIN

SO0703 3N

EPSR Insert included angle

90 Degree

FamilyProducts

Quad-Twist insert SOMT-SK

GRD2ND Standard designation of the grade 2nd application

M15-M30

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2530

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

6.8 mm

ID Technical product number

6136701

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

5.6 mm

LE Cutting edge effective length

6.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO0703 3N

Name Identifying order number

SOMT070306SK IN2530

RE Corner radius

0.6 mm

S Insert thickness

2.8 mm

S1 Insert thickness total

2.8 mm

STDDES Standard designation

SOMT070306

TCINS Tolerance class insert

Working process

No working processes available
