SNMG150612-NM6 WAK30

Артикул: 5118165

В наличии

В корзину

Описание

Характеристики

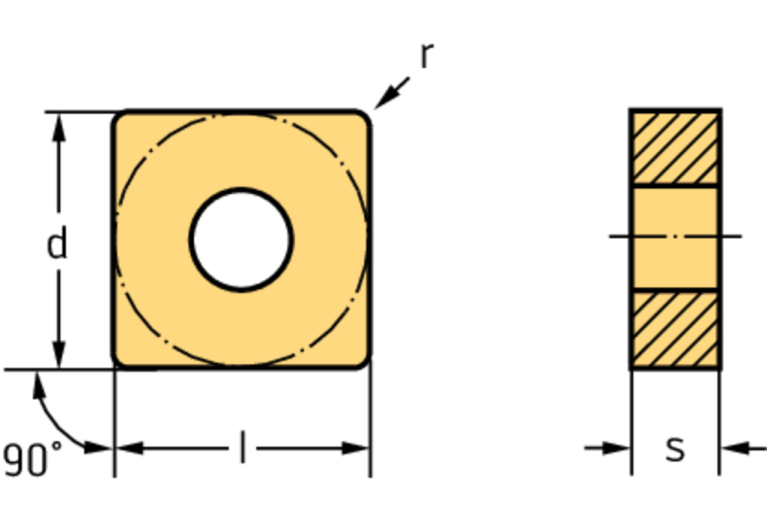

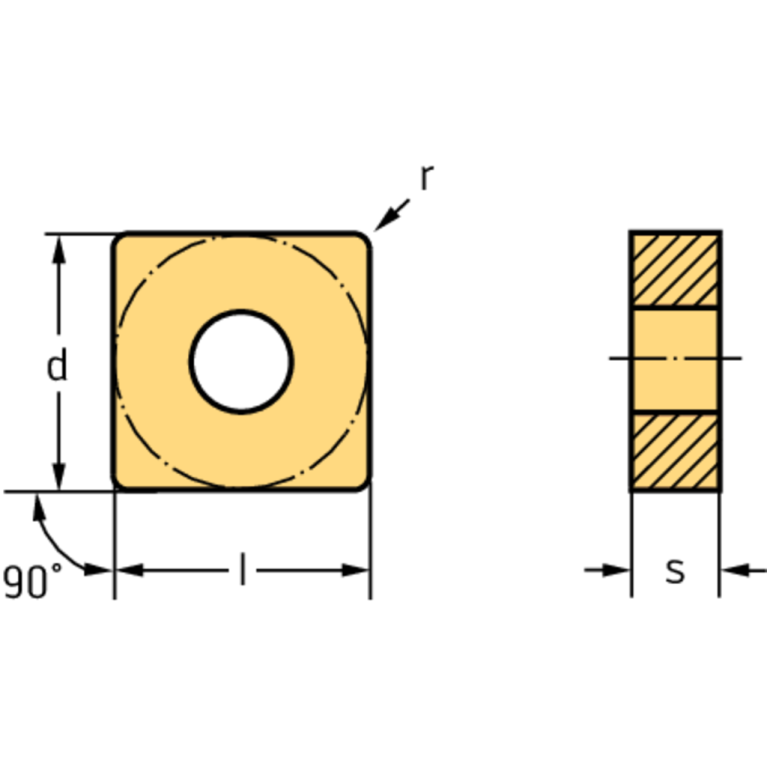

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

NM6

COATN Coating / Покрытие

TiCN+Al2O3+(TiN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6.35 mm

Delivery state valid from

12/1/2023

DIN

SN1506122N

EPSR Insert included angle

90 Degree

FamilyProducts

Negative square SNMG

GRDMFG Grade manufacturers designation

WAK30

IC Inscribed circle diameter

15.875 mm

ID Technical product number

5118165

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SN1506122NB$$12

ISYC Subclass

201-02 - Square insert

L Cutting edge length

15.875 mm

LOC-03 ISO

ISO$SN1506122NB$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1506122N

MIID Master insert identification

SNMG150612 WAK30

Name Identifying order number

SNMG150612-NM6 WAK30

NameAnsi Identifying order number inch alternative

SNMG543-NM6 WAK30

NOI Insert index count

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMG150612

STDDESAnsi Standard designation ANSI

SNMG543

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.019 kg
