Главная Каталог продукции Toolunited 10 201-02 - Square insert SNES1204ANN IN2504

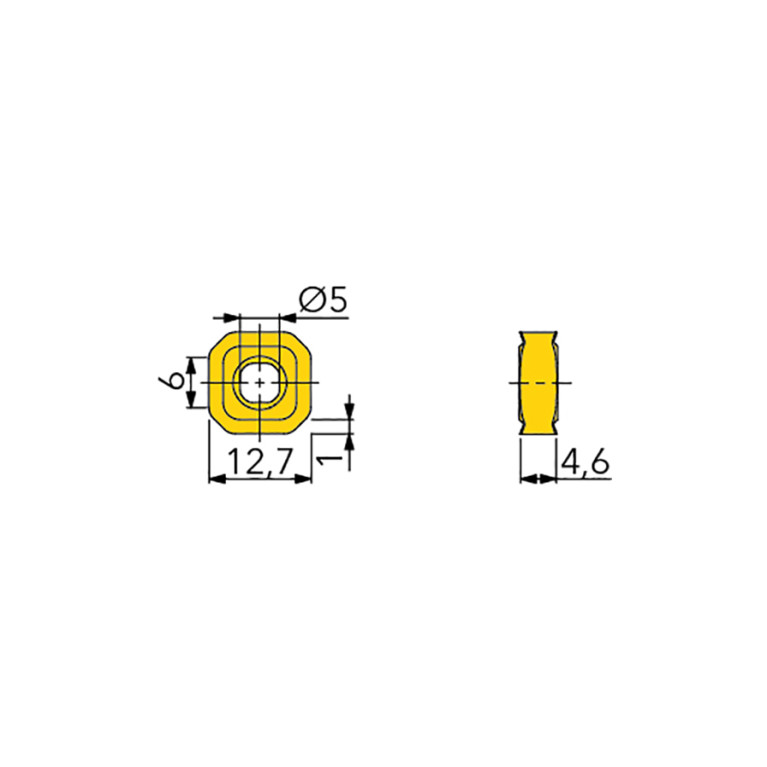

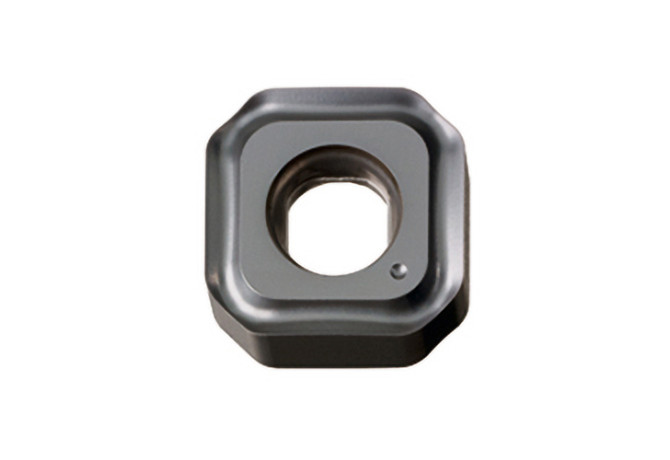

SNES1204ANN IN2504

Артикул: 6135608

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating / Покрытие

AlTiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5 mm

Delivery state

LL - Stock limited

DIN

IL-SN1204N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, short wiper finishing edge

GRD2ND Standard designation of the grade 2nd application

K05-K25

GRDMFG Grade manufacturers designation

IN2504

GRDPRIO Standard designation of the grade main application

P05-P25

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6135608

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

3.02 mm

LE Cutting edge effective length

1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-SN1204N

Name Identifying order number

SNES1204ANN IN2504

RE Corner radius

2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNES1204ANN

TCINS Tolerance class insert

Working process

No working processes available
