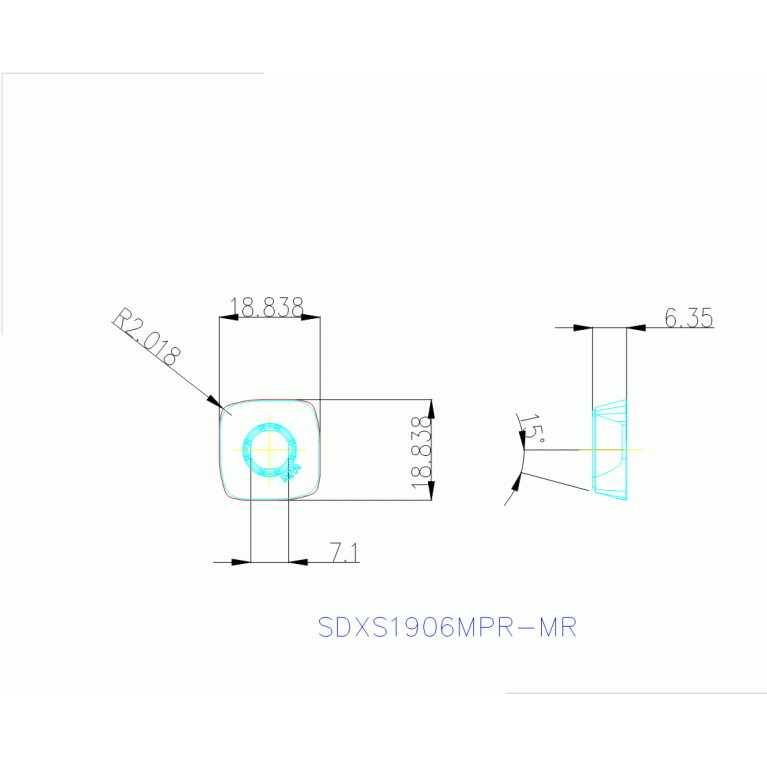

SDXS1906MPR-MR IN2505

Артикул: 2916117

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating

TiAIN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

7.1 mm

Delivery state

LL - Stock limited

DIN

IL-WSP-4109

EPSR Insert included angle

90 Degree

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

18.84 mm

ID Technical product number

2916117

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

3 mm

LE Cutting edge effective length

3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4109

Name Identifying order number

SDXS1906MPR-MR IN2505

RE Corner radius

2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SDXS1906MPR

Working process

No working processes available
