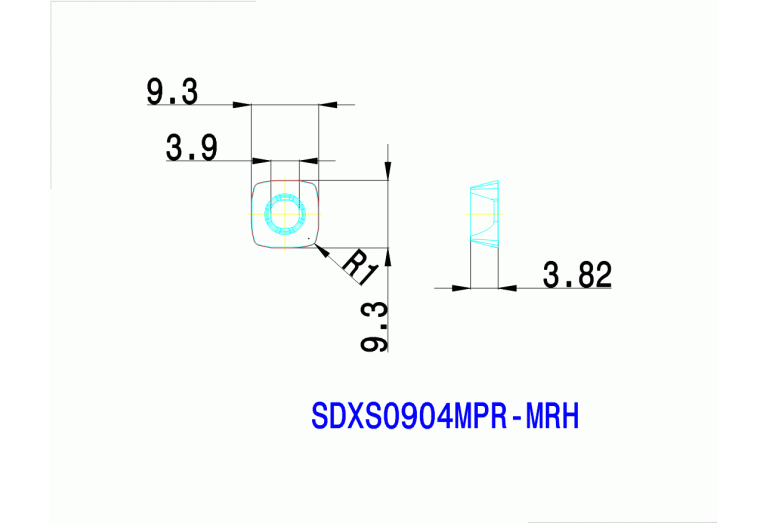

SDXS0904MPR-MRH IN2504

Артикул: 2916491

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating

AlTiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.2 mm

Delivery state

LL - Stock limited

DIN

IL-WSP-4107

EPSR Insert included angle

90 Degree

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

K05-K25

GRDMFG Grade manufacturers designation

IN2504

GRDPRIO Standard designation of the grade main application

P05-P25

IC Inscribed circle diameter

9.5 mm

ID Technical product number

2916491

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

1.5 mm

LE Cutting edge effective length

1.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4107

Name Identifying order number

SDXS0904MPR-MRH IN2504

RE Corner radius

1.01 mm

S Insert thickness

3.82 mm

S1 Insert thickness total

3.82 mm

STDDES Standard designation

SDXS0904MPR

Working process

No working processes available
