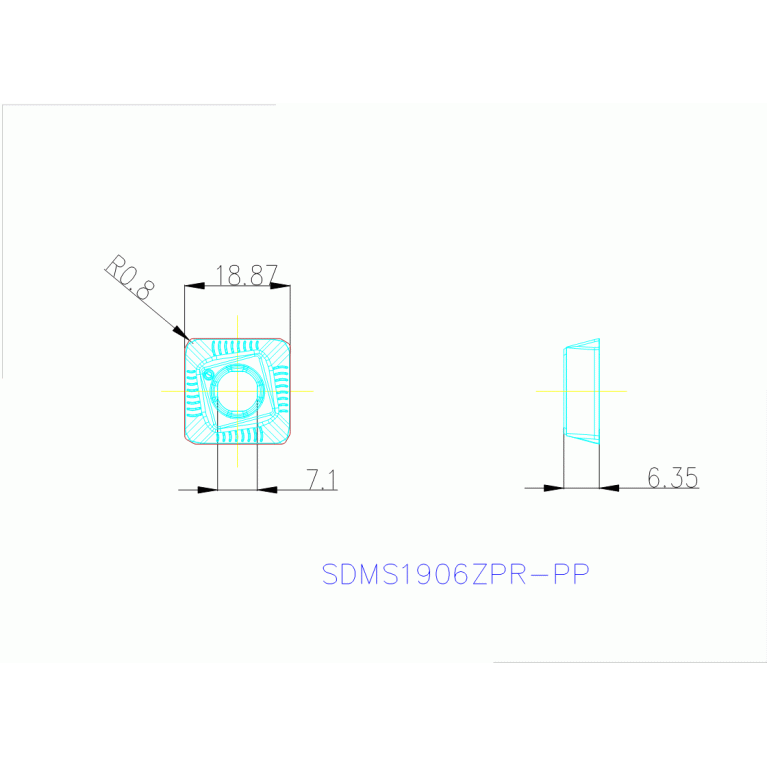

SDMS1906ZPR-PP IN4035

Артикул: 2906110

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating

TiAlN+AlCrO

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

IL-WSP-3968

EPSR Insert included angle

90 Degree

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

S20-S30

GRDMFG Grade manufacturers designation

IN4035

GRDPRIO Standard designation of the grade main application

P25-P50

IC Inscribed circle diameter

19 mm

ID Technical product number

2906110

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

19 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-3968

Name Identifying order number

SDMS1906ZPR-PP IN4035

STDDES Standard designation

SDMS1906ZPR

TCINS Tolerance class insert

Working process

No working processes available
