Главная Каталог продукции Toolunited 10 201-02 - Square insert SCMT120408-PM5 WAK20

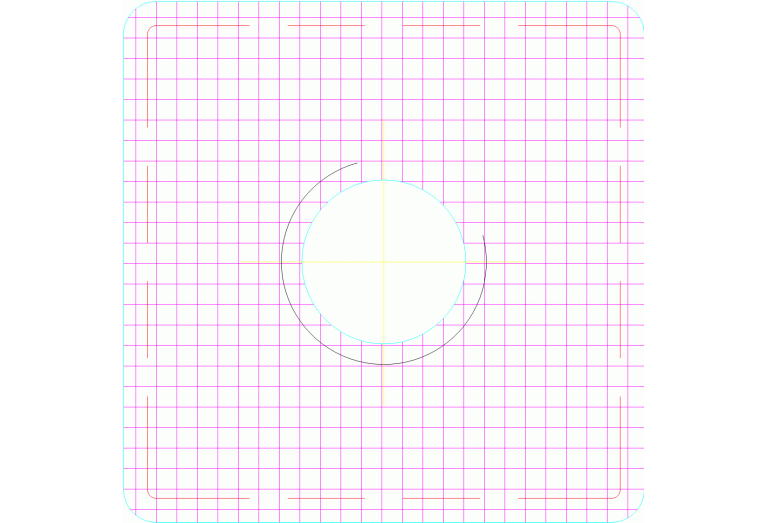

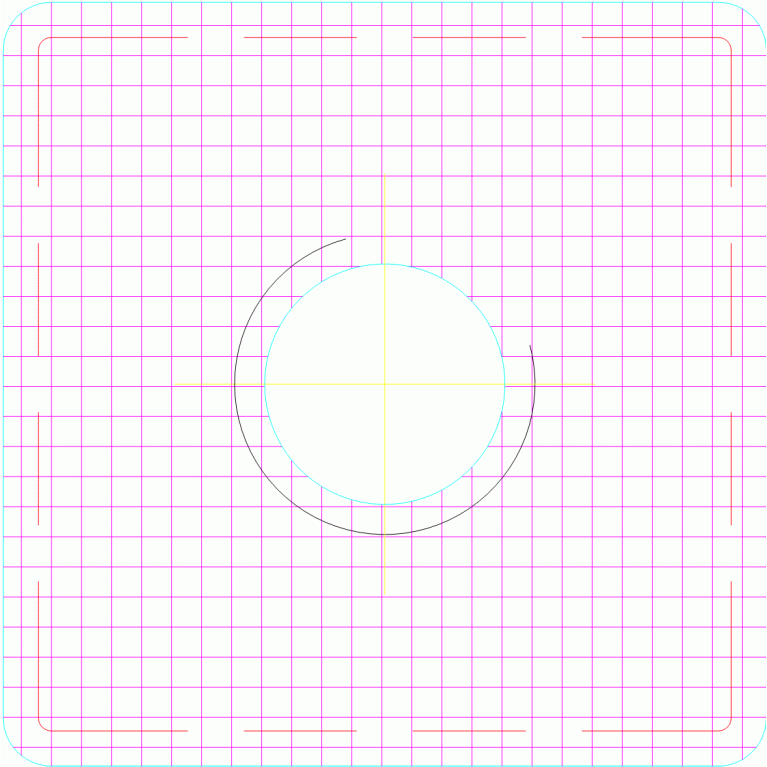

SCMT120408-PM5 WAK20

Артикул: 5022047

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

PM5

CECC Cutting edge condition code

E - Rounded

COATN Coating

TiCN+Al2O3+(TiN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

12/1/2023

DIN

SC1204083N

EPSR Insert included angle

90 Degree

FamilyProducts

Positive square SCMT

GRDMFG Grade manufacturers designation

WAK20

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5022047

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SC1204083NB$$08

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03 ISO

ISO$SC1204083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204083N

MIID Master insert identification

SCMT120408 WAK20

Name Identifying order number

SCMT120408-PM5 WAK20

NameAnsi Identifying order number inch alternative

SCMT432-PM5 WAK20

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

4.7625 mm

S1 Insert thickness total

4.7625 mm

STDDES Standard designation

SCMT120408

STDDESAnsi Standard designation ANSI

SCMT432

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.008 kg
