Главная Каталог продукции Toolunited 10 201-02 - Square insert SCMT09T308-FP4 WEP10C

SCMT09T308-FP4 WEP10C

Артикул: 7735658

В наличии

В корзину

Описание

Характеристики

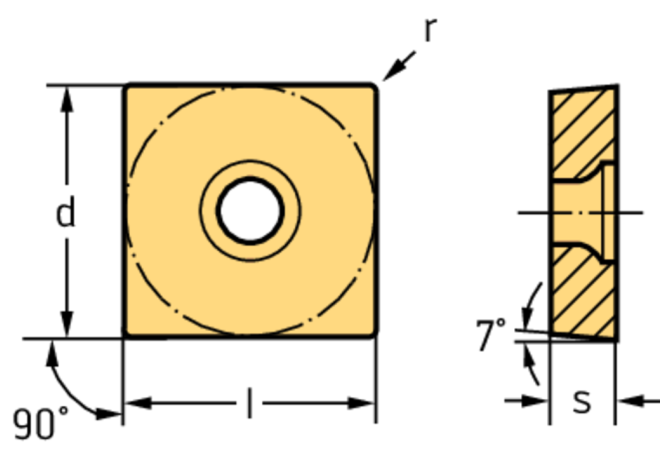

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

FP4

CECC Cutting edge condition code

E - Rounded

COATN Coating

Cermet+TiCN+TiAlN

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

12/1/2023

DIN

SC09T3083N

EPSR Insert included angle

90 Degree

FamilyProducts

Positive square SCMT

GRDMFG Grade manufacturers designation

WEP10C

IC Inscribed circle diameter

9.525 mm

ID Technical product number

7735658

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SC09T3083NB$$08

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.525 mm

LOC-03 ISO

ISO$SC09T3083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC09T3083N

MIID Master insert identification

SCMT09T308 WEP10C

Name Identifying order number

SCMT09T308-FP4 WEP10C

NameAnsi Identifying order number inch alternative

SCMT3(2.5)2-FP4 WEP10C

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

3.969 mm

S1 Insert thickness total

3.969 mm

STDDES Standard designation

SCMT09T308

STDDESAnsi Standard designation ANSI

SCMT32.52

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.003 kg
