Главная Каталог продукции Toolunited 10 201-02 - Square insert SCMT09T308-F2 TM4000

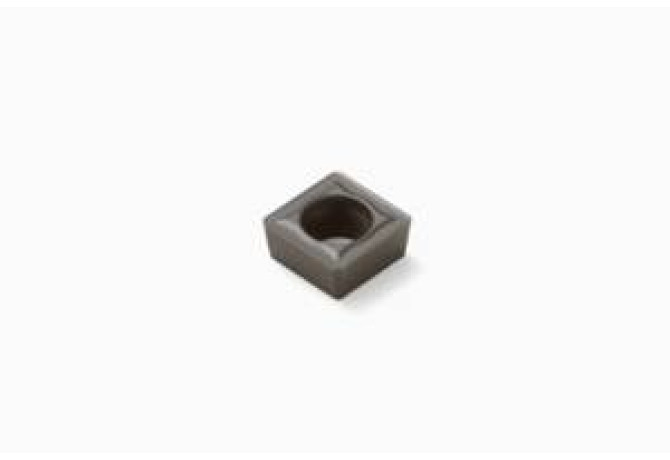

SCMT09T308-F2 TM4000

Артикул: 02566133

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

SO - SECO Tools

Delivery state valid from

4/24/2018

DIN

SC09T3083N

EPSR Insert included angle

90 Degree

FamilyProducts

SCMT09T308-F2 TM4000

GRDMFG Grade manufacturers designation

TM4000

IC Inscribed circle diameter

9.52 mm

ID Technical product number

02566133

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SC09T3083NB$$08

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

LE Cutting edge effective length

8.7 mm

LOC-03 ISO

ISO$SC09T3083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC09T3083N

MIID Master insert identification

SCMT09T308 TM4000

Name Identifying order number

SCMT09T308-F2 TM4000

NameAnsi Identifying order number inch alternative

SCMT32.52-F2 TM4000

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SCMT09T308

STDDESAnsi Standard designation ANSI

SCMT32.52

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.003 kg
