Главная Каталог продукции Toolunited 10 201-02 - Square insert SCMT060204-E47 WSM30

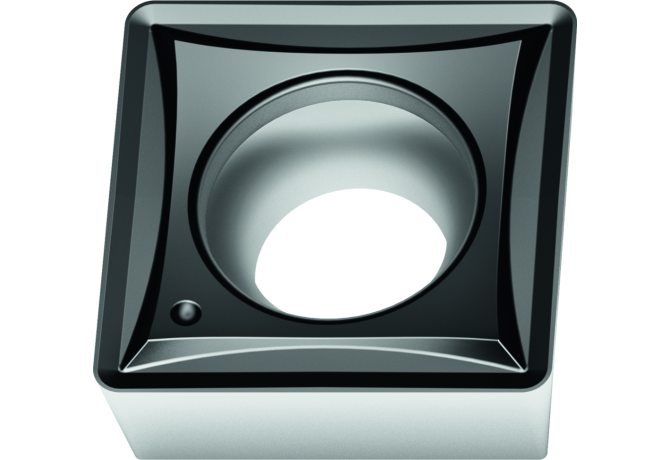

SCMT060204-E47 WSM30

Артикул: 6118346

В наличии

В корзину

Описание

Характеристики

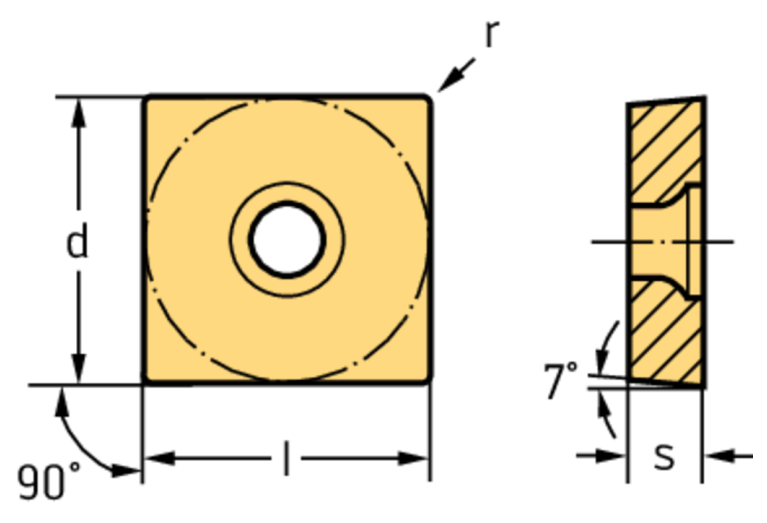

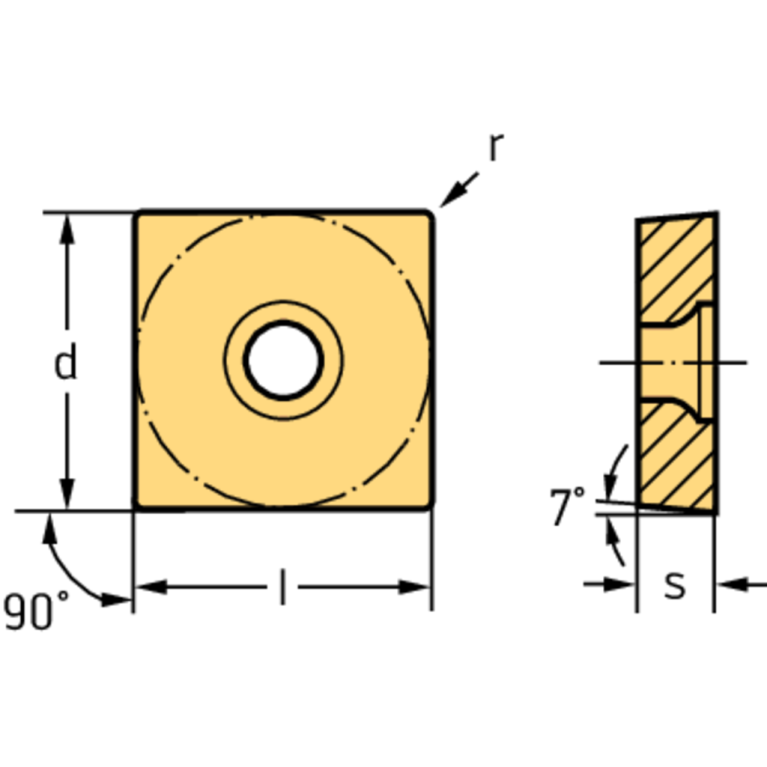

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

E47

COATN Coating

TiAlN+Al2O3+(ZrN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

12/1/2023

DIN

W-BE0602$$3RB$$$$

EPSR Insert included angle

90 Degree

FamilyProducts

Positive square SCMT

GRDMFG Grade manufacturers designation

WSM30

IC Inscribed circle diameter

6.35 mm

ID Technical product number

6118346

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$BE0602$$3RB$$$$

ISYC Subclass

201-02 - Square insert

L Cutting edge length

6.35 mm

LOC-03 ISO

WR$$BE0602$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-BE0602$$3RB$$$$

Name Identifying order number

SCMT060204-E47 WSM30

NameAnsi Identifying order number inch alternative

SCMT2(1.5)1-E47 WSM30

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

SCMT060204

STDDESAnsi Standard designation ANSI

SCMT21.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

BVB - Drilling

WT Weight of item

0.001 kg
