Главная Каталог продукции Toolunited 10 201-02 - Square insert SCGX070308-MP DS2050

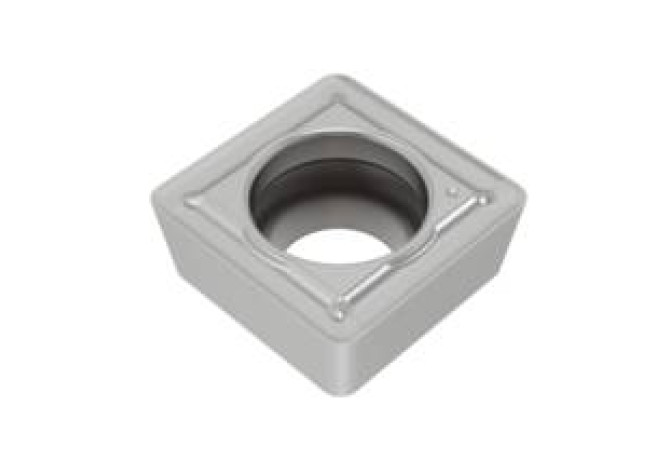

SCGX070308-MP DS2050

Артикул: 03134314

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

SO - SECO Tools

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

12/1/2023

DIN

SO-SC0703 3N

EPSR Insert included angle

90 Degree

FamilyProducts

SCGX070308-MP DS2050

GRDMFG Grade manufacturers designation

DS2050

IC Inscribed circle diameter

7.94 mm

ID Technical product number

03134314

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

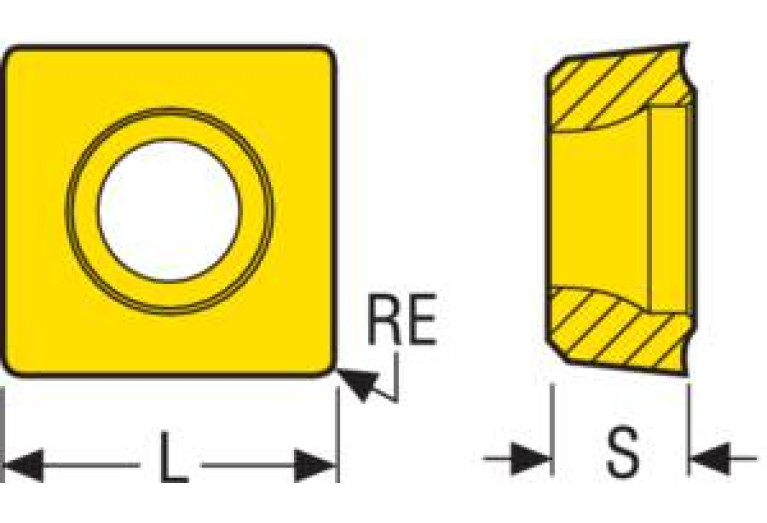

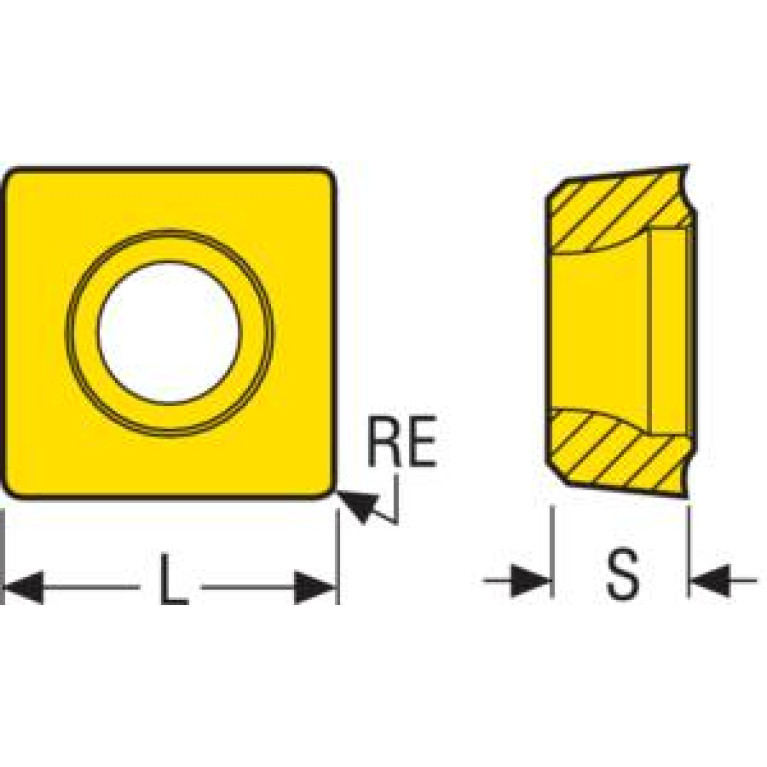

L Cutting edge length

7.94 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO-SC0703 3N

MIID Master insert identification

SCGX070308 DS2050

Name Identifying order number

SCGX070308-MP DS2050

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SCGX070308

STDDESAnsi Standard designation ANSI

SCGX2.522

TCINS Tolerance class insert

Working process

No working processes available
