Главная Каталог продукции Toolunited 10 201-02 - Square insert SCGT09T308-PF2 WSM20

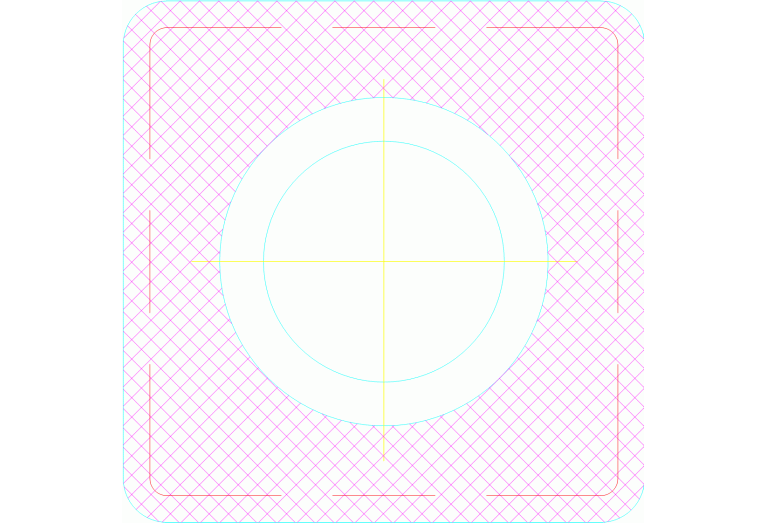

SCGT09T308-PF2 WSM20

Артикул: 6031963

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

PF2

COATN Coating

TiAlN+Al2O3+(ZrN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

12/1/2023

DIN

SC09T3083N

EPSR Insert included angle

90 Degree

FamilyProducts

Positive square SCGT

GRDMFG Grade manufacturers designation

WSM20

IC Inscribed circle diameter

9.525 mm

ID Technical product number

6031963

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SC09T3083NB$$08

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.525 mm

LOC-03 ISO

ISO$SC09T3083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC09T3083N

MIID Master insert identification

SCGT09T308 WSM20

Name Identifying order number

SCGT09T308-PF2 WSM20

NameAnsi Identifying order number inch alternative

SCGT3(2.5)2-PF2 WSM20

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

3.96875 mm

S1 Insert thickness total

3.96875 mm

STDDES Standard designation

SCGT09T308

STDDESAnsi Standard designation ANSI

SCGT32.52

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.003 kg
