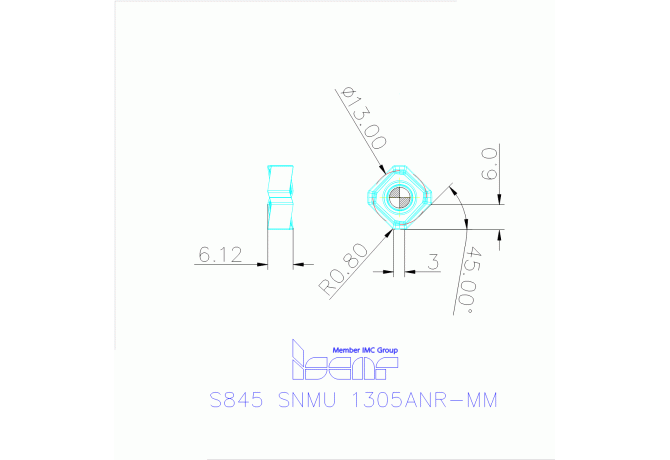

S845 SNMU 1305ANR-MM

Артикул: 5606055

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BS Wiper edge length

3 mm

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

DIN

IS-599673740535760

EPSR Insert included angle

90 Degree

FamilyProducts

Square Double-Sided Inserts with 8 Cutting Edges

IC Inscribed circle diameter

13 mm

ID Technical product number

5606055

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$599673740535760

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

13 mm

LOC-03 ISO

IS$$599673740535760

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-599673740535760

Name Identifying order number

S845 SNMU 1305ANR-MM

RE Corner radius

0.8 mm

S Insert thickness

6.2 mm

Working process

No working processes available

WT Weight of item

0.01 kg
