Главная Каталог продукции Toolunited 10 201-02 - Square insert P4840P-1R-A57 WKP35

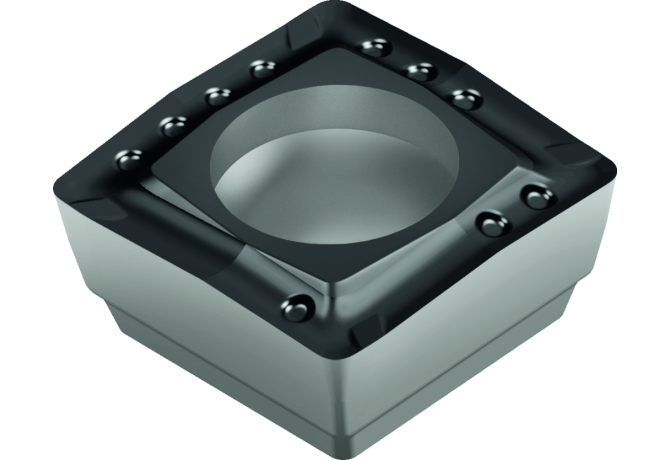

P4840P-1R-A57 WKP35

Артикул: 5581718

В наличии

В корзину

Описание

Характеристики

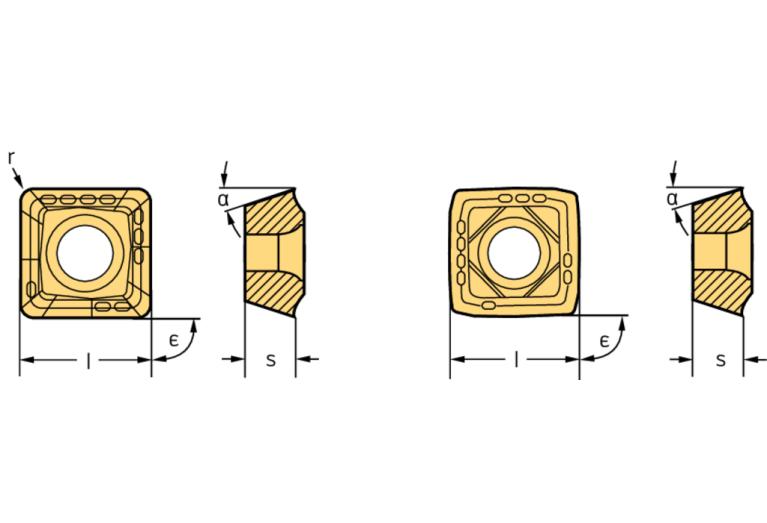

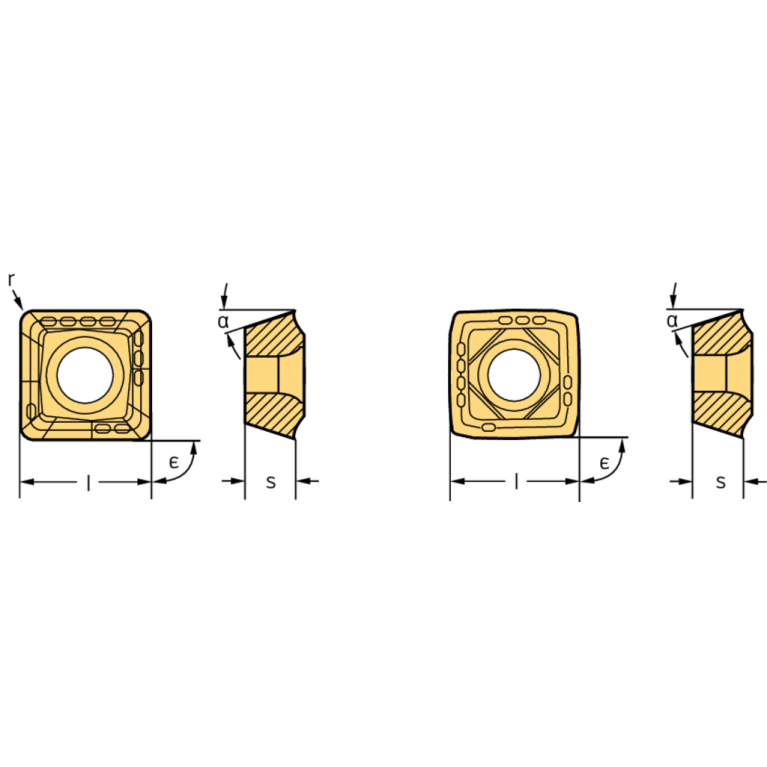

AN Clearance angle major

11 Degree

CBMD Chip breaker manufacturers designation

A57

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.15 mm

Delivery state valid from

12/1/2023

DIN

W-P48401$$3RBP$$$

EPSR Insert included angle

90 Degree

FamilyProducts

Square P484 .

GRDMFG Grade manufacturers designation

WKP35

IC Inscribed circle diameter

4.55 mm

ID Technical product number

5581718

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$P48401$$3RBP$$$

ISYC Subclass

201-02 - Square insert

L Cutting edge length

4.55 mm

LOC-03 ISO

WR$$P48401$$3RBP$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-P48401$$3RBP$$$

Name Identifying order number

P4840P-1R-A57 WKP35

RE Corner radius

0.29 mm

S Insert thickness

1.96 mm

S1 Insert thickness total

1.96 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

BVB - Drilling

WT Weight of item

0.001 kg
