P2841S-1N-A57 WXP40

Артикул: 7487812

В наличии

В корзину

Описание

Характеристики

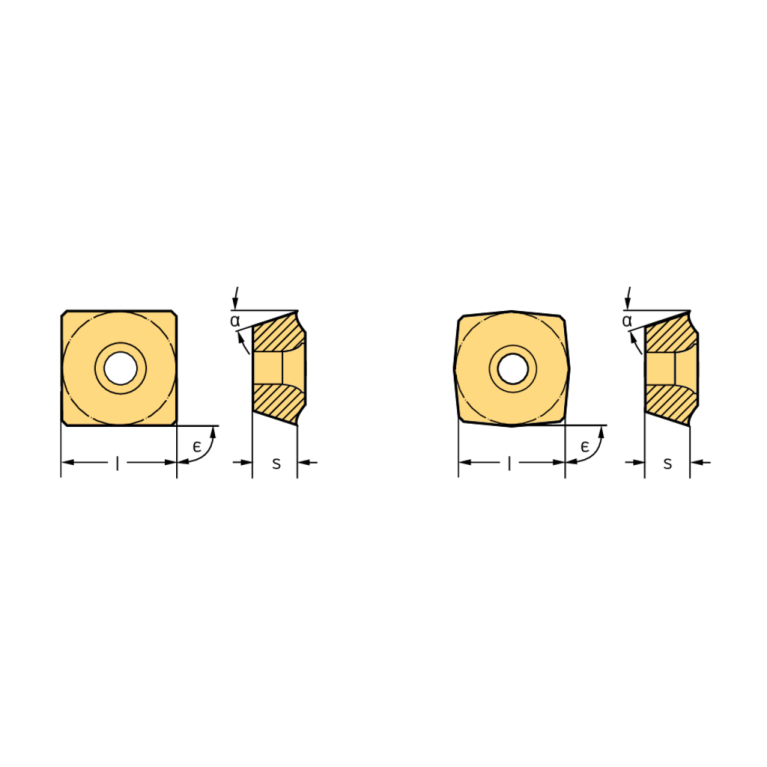

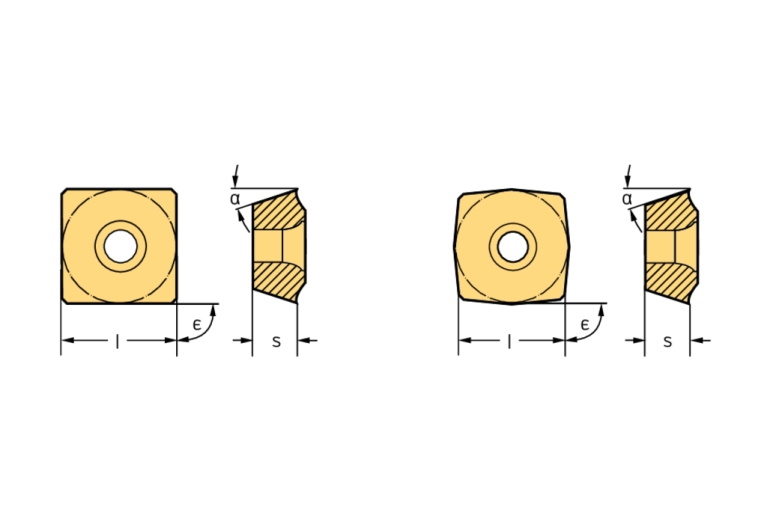

AN Clearance angle major

14 Degree

CBMD Chip breaker manufacturers designation

A57

COATN Coating

TiCN

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

12/1/2023

DIN

W-P28401$$3RB$$$$

EPSR Insert included angle

90 Degree

FamilyProducts

Square P284..

GRDMFG Grade manufacturers designation

WXP40

IC Inscribed circle diameter

6.35 mm

ID Technical product number

7487812

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$P28401$$3RB$$$$

ISYC Subclass

201-02 - Square insert

L Cutting edge length

6.35 mm

LOC-03 ISO

WR$$P28401$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-P28401$$3RB$$$$

Name Identifying order number

P2841S-1N-A57 WXP40

NOI Insert index count

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

BVB - Drilling

WT Weight of item

0.001 kg
