Главная Каталог продукции Toolunited 10 201-02 - Square insert FFQ4 SOMT 120516HP IC808

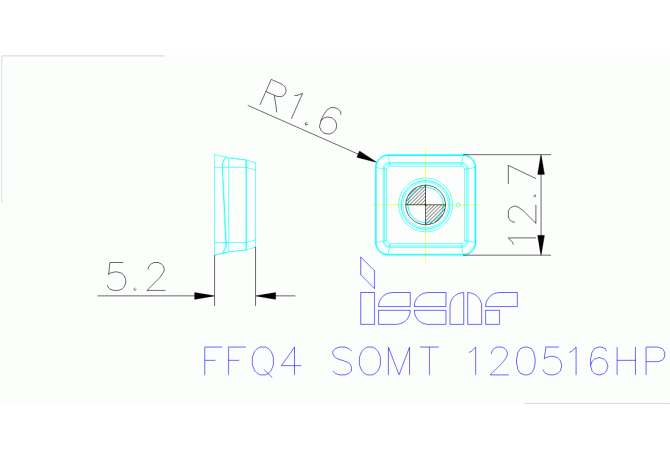

FFQ4 SOMT 120516HP IC808

Артикул: 3311928

В наличии

В корзину

Описание

Характеристики

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/2/2018

EPSR Insert included angle

90 Degree

FamilyProducts

Square Single-Sided Inserts with 4 Cutting Edges for Fast Feed Milling

GRDMFG Grade manufacturers designation

IC808

IC Inscribed circle diameter

12.7 mm

ID Technical product number

3311928

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

/ J441

ISISO ISO property

ISO

IS$$138513628742208

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LE Cutting edge effective length

1.5 mm

LOC-03 ISO

IS$$138513628742208

LOC-03-Connection-codes

J6 / J441 - connection code machine end

Name Identifying order number

FFQ4 SOMT 120516HP IC808

NOI Insert index count

RE Corner radius

1.6 mm

S Insert thickness

5.2 mm

STDDES Standard designation

SOMT120516

Working process

No working processes available

WT Weight of item

0.01 kg
