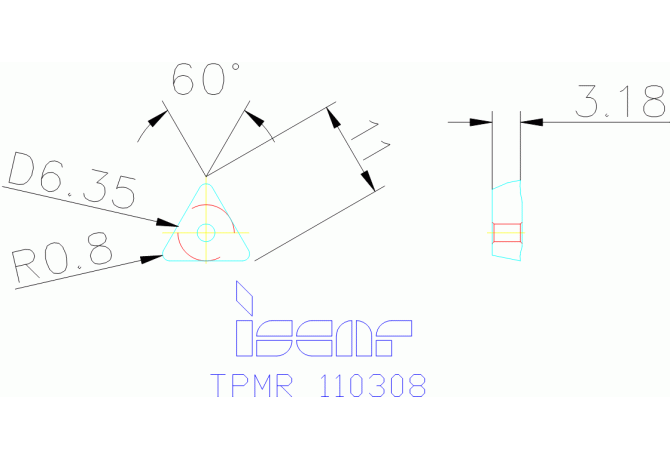

TPMR 110308 IC830

Артикул: 3308109

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

AlTiN+TiN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

12/30/2017

DIN

TP1103081N

EPSR Insert included angle

60 Degree

FamilyProducts

11° positive triangular inserts

GRD2ND Standard designation of the grade 2nd application

HC-S15

GRDMFG Grade manufacturers designation

IC830

GRDPRIO Standard designation of the grade main application

HC-P20

IC Inscribed circle diameter

6.35 mm

ID Technical product number

3308109

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1103081N

Name Identifying order number

TPMR 110308 IC830

NameAnsi Identifying order number inch alternative

TPMR 222 IC830

RE Corner radius

0.8 mm

S Insert thickness

3.17 mm

S1 Insert thickness total

3.17 mm

STDDES Standard designation

TPMR110308

STDDESAnsi Standard designation ANSI

TPMR 222

TCINS Tolerance class insert

Working process

No working processes available
