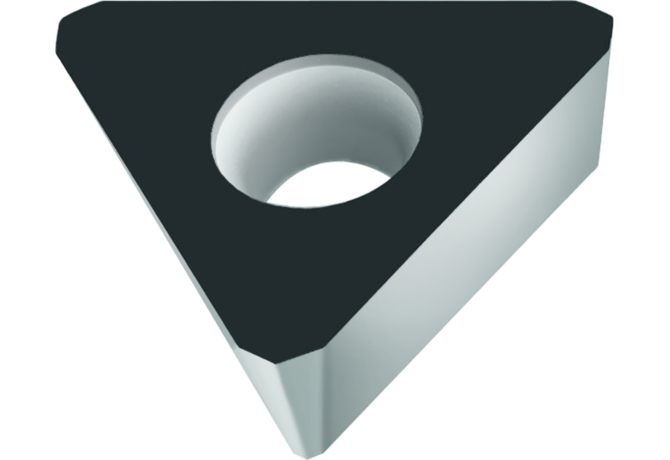

TPAW1604PPN WTP35

Артикул: 5040228

В наличии

В корзину

Описание

Характеристики

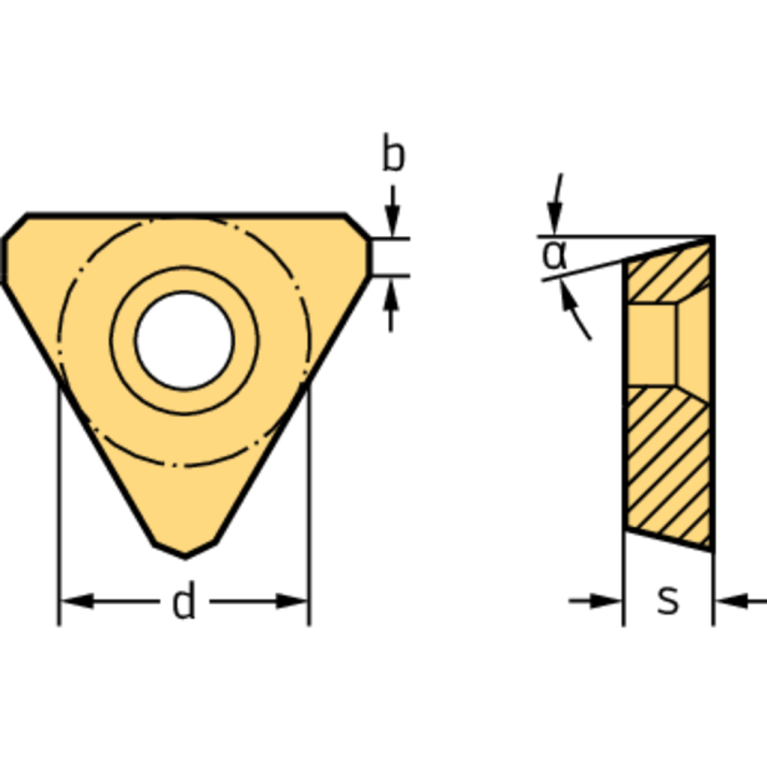

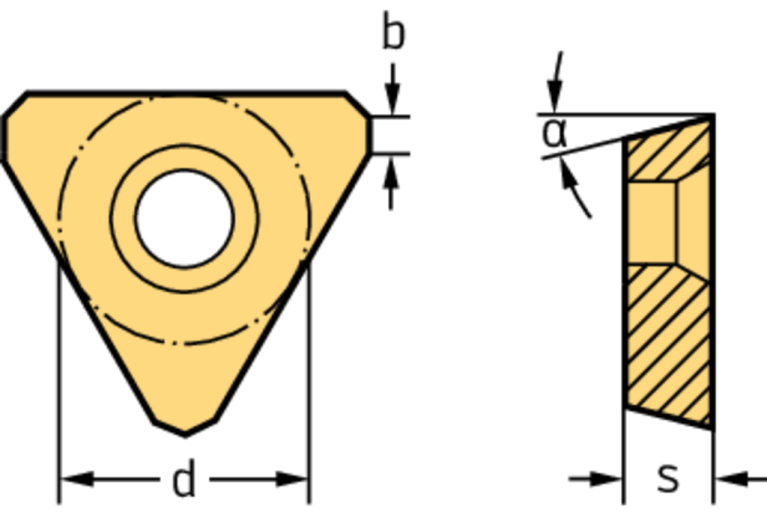

AN Clearance angle major

11 Degree

BS Wiper edge length

1.2 mm

CBMD Chip breaker manufacturers designation

A57

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

12/1/2023

DIN

W-MW1604$$3NB$$$$

EPSR Insert included angle

60 Degree

FamilyProducts

Positive triangular TPAW

GRDMFG Grade manufacturers designation

WTP35

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5040228

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$MW1604$$3NB$$$$

ISYC Subclass

201-01 - Triangle insert

LOC-03 ISO

WR$$MW1604$$3NB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-MW1604$$3NB$$$$

Name Identifying order number

TPAW1604PPN WTP35

NOI Insert index count

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TPAW1604PPN

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

FPL - Face milling

WT Weight of item

0.005 kg
