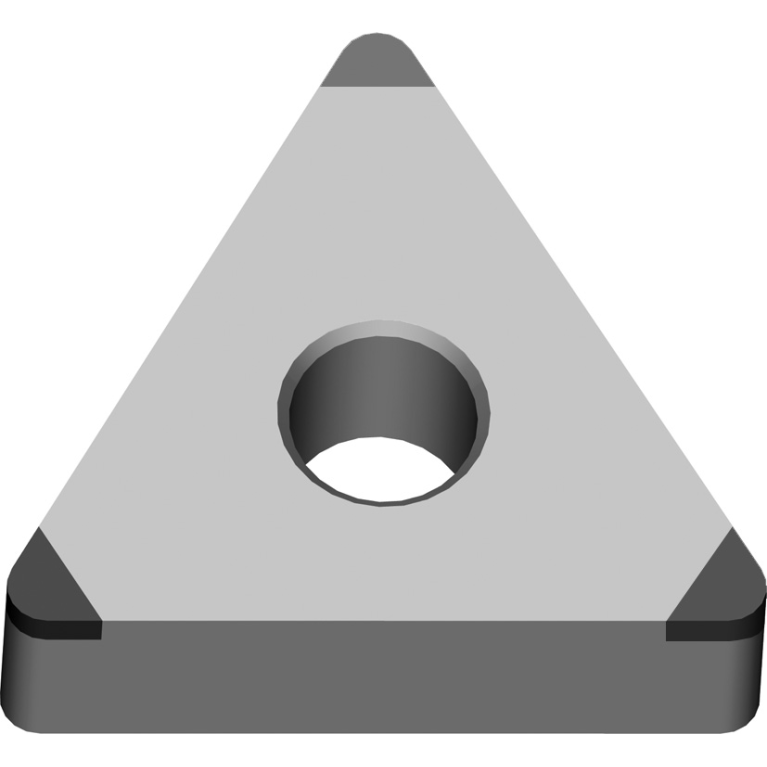

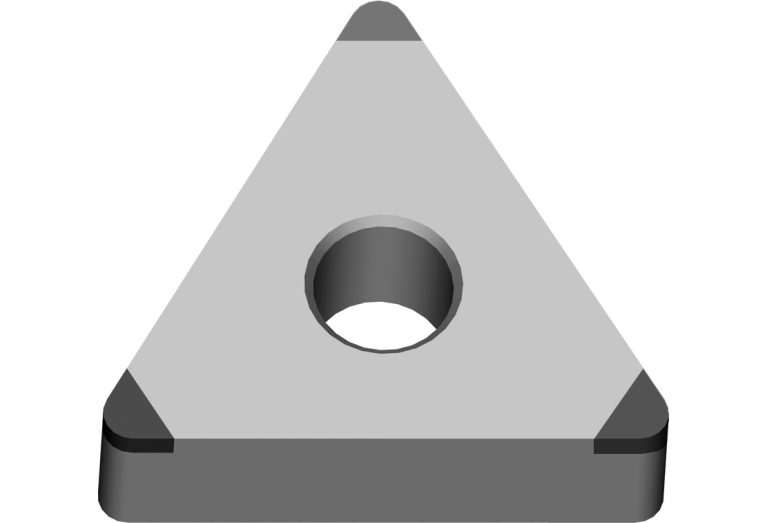

TNGA160412-3 YCB111

Артикул: TNGA160412-3 YCB111

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

COATN Coating / Покрытие

ohne

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

3.81 mm

Delivery state

NL - Discontinued

DIN

TN1604122N

EPSR Insert included angle

60 Degree

FamilyProducts

TN** negative insert

GRDMFG Grade manufacturers designation

YCB111

GRDPRIO Standard designation of the grade main application

H01-H20

IC Inscribed circle diameter

9.525 mm

ID Identifying order number

TNGA160412-3 YCB111

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1604122N

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
