Главная Каталог продукции Toolunited 10 201-01 - Triangle insert TCMT110204-MS MP9005

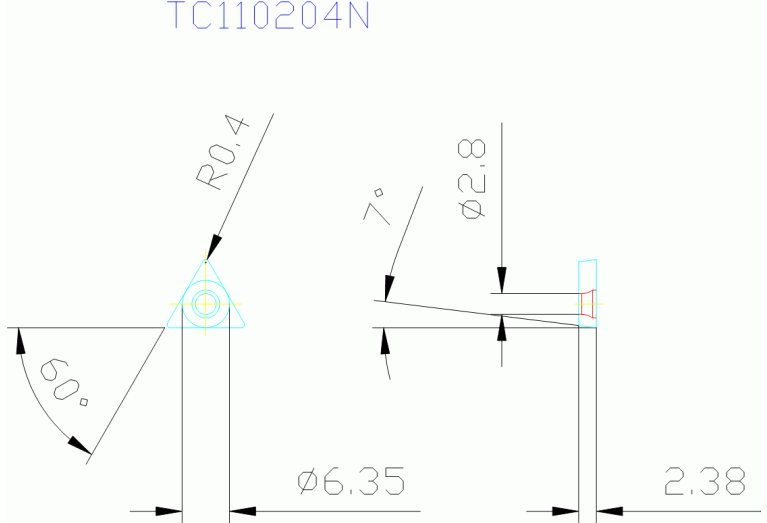

TCMT110204-MS MP9005

Артикул: 10590461

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating

(Al,Ti)N

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

6/14/2018

EPSR Insert included angle

60 Degree

FamilyProducts

Turning Insert for Difficult-to-cut Materials(Positive)

GRDMFG Grade manufacturers designation

MP9005

IC Inscribed circle diameter

6.35 mm

ID Technical product number

10590461

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$TC1102043NB$$04

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03 ISO

ISO$TC1102043NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

Name Identifying order number

TCMT110204-MS MP9005

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

STDDESAnsi Standard designation ANSI

TCMT21.51MS

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
